London Underground Approved Band-It Stainless Steel Ball Lok Cable Ties for Fire Rated Applications

Band-It Stainless Steel Cable Ties

LU London Underground Approved Cable Ties

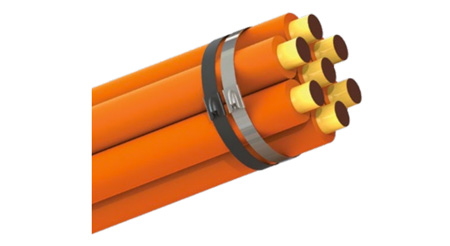

Band-It Coated Ball-Lok Stainless Steel Cable Ties have passed London Underground fire tests for locating and bundling rail cables on the underground system - the Band-It Selectively Coated Ball-Lok Cable Ties are coated with Black Rilsan Nylon 11.

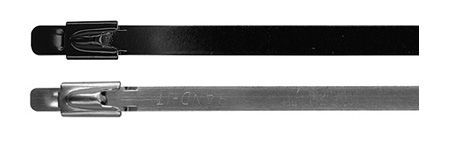

Band-it Ball Lok Ties

Band-it Ball Lok Tie Features

  • CE Marked
  • DNV Approved
  • Coast Guard Approved
  • Self-locking ties
  • Available in two widths:  4.6mm and 7.9mm
  • Speedy Application
  • Epoxy coated or uncoated styles available

Band-it Ball Lok Cable Ties



Band-It Stainless Steel Ball Lok Cable Tie Specifications
Part No. Material  Coated / Uncoated Width Length Base Material Thick-ness Max Dia Single Wrap Min Loop Tensile Strength

Band-It KE1128

304 SS

Uncoated 4.6mm 201mm 0.25mm 50mm 200lbs

Band-It KE1138

304 SS

Uncoated 4.6mm 259mm 0.25mm 69mm 200lbs

Band-It KE1148

304 SS

Uncoated 4.6mm 360mm 0.25mm 102mm 200lbs

Band-It KE1158

304 SS

Uncoated 4.6mm 520mm 0.25mm 152mm 200lbs

Band-It KE1168

304 SS

Uncoated 4.6mm 679mm 0.25mm 203mm 200lbs

Band-It KE1178

304 SS

Uncoated 4.6mm 838mm 0.25mm 254mm 200lbs

Band-It KE1188

304 SS

Uncoated 4.6mm 1067mm 0.25mm 305mm 200lbs

Band-It KE0128

304 SS

Uncoated 4.6mm 201mm 0.25mm 50mm 200lbs

Band-It KE0138

304 SS

Uncoated 4.6mm 259mm 0.25mm 69mm 200lbs

Band-It KE0148

304 SS

Uncoated 4.6mm 360mm 0.25mm 102mm 200lbs

Band-It KE0158

304 SS

Uncoated 4.6mm 520mm 0.25mm 152mm 200lbs

Band-It KE0168

304 SS

Uncoated 4.6mm 679mm 0.25mm 203mm 200lbs

Band-It KE0178

304 SS

Uncoated 4.6mm 838mm 0.25mm 254mm 200lbs

Band-It KE0188

304 SS

Uncoated 4.6mm 1067mm 0.25mm 305mm 200lbs

Band-It KE1328

304 SS

Uncoated 7.9mm 201mm 0.25mm 50mm 300lbs

Band-It KE1338

304 SS

Uncoated 7.9mm 259mm 0.25mm 69mm 300lbs

Band-It KE1348

304 SS

Uncoated 7.9mm 360mm 0.25mm 102mm 300lbs

Band-It KE1358

304 SS

Uncoated 7.9mm 520mm 0.25mm 152mm 300lbs

Band-It KE1368

304 SS

Uncoated 7.9mm 679mm 0.25mm 203mm 300lbs

Band-It KE1378

304 SS

Uncoated 7.9mm 838mm 0.25mm 254mm 300lbs

Band-It KE1388

304 SS Uncoated 7.9mm 1067mm

0.25mm

305mm 300lbs

Band-It KE0328

316 SS

Uncoated 7.9mm 201mm 0.25mm 50mm 300lbs

Band-It KE0338

316 SS

Uncoated 7.9mm 259mm 0.25mm 69mm 300lbs

Band-It KE0348

316 SS

Uncoated 7.9mm 360mm 0.25mm 102mm 300lbs

Band-It KE0358

316 SS

Uncoated 7.9mm 520mm 0.25mm 152mm 300lbs

Band-It KE0368

316 SS

Uncoated 7.9mm 679mm 0.25mm 203mm 300lbs

Band-It KE0378

316 SS

Uncoated 7.9mm 838mm 0.25mm 254mm 300lbs

Band-It KE0388

316 SS

Uncoated 7.9mm 1067mm 0.25mm 305mm 300lbs

Band-It KE0228

316 SS

Coated 4.6mm 201mm 0.25mm 50mm 150lbs

Band-It KE0238

316 SS

Coated 4.6mm 259mm 0.25mm 69mm 150lbs

Band-It KE0248

316 SS

Coated 4.6mm 360mm 0.25mm 102mm 150lbs

Band-It KE0258

316 SS

Coated 4.6mm 520mm 0.25mm 152mm 150lbs

Band-It KE0268

316 SS

Coated 4.6mm 679mm 0.25mm 203mm 150lbs

Band-It KE0278

316 SS

Coated 4.6mm 838mm 0.25mm 254mm 150lbs

Band-It KE0428

316 SS

Coated 7.9mm 201mm 0.25mm 50mm 175lbs

Band-It KE0438

316 SS

Coated 7.9mm 259mm 0.25mm 69mm 175lbs

Band-It KE0448

316 SS

Coated 7.9mm 360mm 0.25mm 102mm 175lbs

Band-It KE0458

316 SS

Coated 7.9mm 520mm 0.25mm 152mm 175lbs

Band-It KE0468

316 SS

Coated 7.9mm 679mm 0.25mm 203mm 175lbs

Band-It KE0478

316 SS Coated 7.9mm 838mm 0.25mm 254mm 175lbs
