Band-It Ball-Lokt Cable Ties

304 & 316 Stainless Steel Cable Ties



Suitable for identification tagging and bundling large cables. Self locking design allows fast installation. Used in cable management applications to reduce the risk of cutting or abrading low or high voltage cables. Excellent corrosion resistance for harsh environments or hazardous areas.

Loop tensile strengths range from 125 to 325 pounds. Halogen free, low smoke, black epoxy coating for maximum safety.

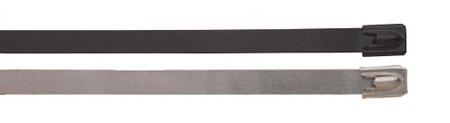

Pictured: Band-It Ball-Lokt Cable Ties

Band-It Ball-Lokt Stainless Steel Cable Tie Features

• Four widths – 4.6mm, 7.8mm, 12mm, and 15mm for applications ranging from identification tagging to bundling large cables
• Self locking design allows fast installation
• Installation by hand or with tools to assure uniform tension and clean tail cut-off for safe handling
• Available in Type 304 and Type 316 stainless steels to provide good to excellent corrosion resistance in a wide variety of environments
• Coated Band-It Ball-Lokt Ties are fully coated with black epoxy
• Custom lengths can be made in 50mm increments to meet specific requirements without limits

Band-It Ball-Lokt Stainless Steel Cable Tie Specifications

Part No	Coated/ Uncoated	Material	Width	Length	Base Material Thickness	Max. Dia Single Wrap	Min.Loop Tensile Strength
KT4U046-0200	Uncoated	304 SS	4.6 mm	200 mm	0.250 mm	52 mm	125 lbs
KT4U046-0250	Uncoated	304 SS	4.6 mm	250 mm	0.250 mm	67 mm	125 lbs
KT4U046-0350	Uncoated	304 SS	4.6 mm	350 mm	0.250 mm	99 mm	125 lbs
KT4U046-0500	Uncoated	304 SS	4.6 mm	500 mm	0.250 mm	147 mm	125 lbs
KT6U046-0200	Uncoated	316 SS	4.6 mm	200 mm	0.250 mm	52 mm	125 lbs
KT6U046-0250​	Uncoated	316 SS	4.6 mm	250 mm	0.250 mm	67 mm	125 lbs
KT6U046-0350	Uncoated	316 SS	4.6 mm	350 mm	0.250 mm	99 mm	125 lbs
KT6U046-0500​	Uncoated	316 SS	4.6 mm	500 mm	0.250 mm	147 mm	125 lbs
KT4U078-0200	Uncoated	304 SS	7.8 mm	200 mm	0.250 mm	52 mm	175 lbs
KT4U078-0250	Uncoated	304 SS	7.8 mm	250 mm	0.250 mm	67 mm	175 lbs
KT4U078-0350	Uncoated	304 SS	7.8 mm	350 mm	0.250 mm	99 mm	175 lbs
KT4U078-0500	Uncoated	304 SS	7.8 mm	500 mm	0.250 mm	147 mm	175 lbs
KT4U078-0600	Uncoated	304 SS	7.8 mm	600 mm	0.250 mm	179 mm	175 lbs
KT6U078-0200	Uncoated	316 SS	7.8 mm	200 mm	0.250 mm	52 mm	175 lbs
KT6U078-0250	Uncoated	316 SS	7.8 mm	250 mm	0.250 mm	67 mm	175 lbs
KT6U078-0350	Uncoated	316 SS	7.8 mm	350 mm	0.250 mm	99 mm	175 lbs
KT6U078-0500	Uncoated	316 SS	7.8 mm	500 mm	0.250 mm	147 mm	175 lbs
KT6U078-0600	Uncoated	316 SS	7.8 mm	600 mm	0.250 mm	179 mm	175 lbs
KT6U120-0450	Uncoated	316 SS	12 mm	450 mm	0.350 mm	131 mm	250 lbs
KT6U120-0550	Uncoated	316 SS	12 mm	550 mm	0.350 mm​	163 mm	250 lbs
KT6U120-0600	Uncoated	316 SS	12 mm	600 mm	0.350 mm​	179 mm	250 lbs
KT6U150-0500	Uncoated	316 SS	15 mm	500 mm	0.350 mm​	147 mm	325 lbs
KT6U150-0600	Uncoated	316 SS	15 mm​	600 mm	0.350 mm​	179 mm	325 lbs
KT6U150-0700	Uncoated	316 SS	15 mm​	700 mm	0.350 mm​	211 mm	325 lbs
KT6U150-0800	Uncoated	316 SS	15 mm​	800 mm	0.350 mm​	243 mm	325 lbs
KT6U150-0900	Uncoated	316 SS	15 mm​	900 mm	0.350 mm​	274 mm	325 lbs
KT6U150-1100	Uncoated	316 SS	15 mm​	1100 mm	0.350 mm​	338 mm	325 lbs
KT6B046-0200	Coated	316 SS	4.6 mm	200 mm	0.250 mm	52 mm	125 lbs
KT6B046-0250	Coated​	316 SS	4.6 mm	250 mm	0.250 mm	67 mm	125 lbs
KT6B046-0350	Coated​	316 SS	4.6 mm	350 mm	0.250 mm	99 mm	125 lbs
KT6B046-0500	Coated​	316 SS	4.6 mm	500 mm	0.250 mm	147 mm	125 lbs
KT6B078-0200	Coated​	316 SS	7.8 mm	200 mm	0.250 mm	52 mm	175 lbs
KT6B078-0250	Coated​	316 SS	7.8 mm	250 mm	0.250 mm	67 mm	175 lbs​
KT6B078-0350	Coated​	316 SS	7.8 mm	350 mm	0.250 mm	99 mm	175 lbs​
KT6B078-0500	Coated​	316 SS	7.8 mm	500 mm	0.250 mm	147 mm	175 lbs​
KT6B078-0600	Coated​	316 SS	7.8 mm	600 mm	0.250 mm	179 mm	175 lbs​
KT6B120-0450	Coated​	316 SS	12 mm	450 mm	0.350 mm	131 mm	250 lbs​
KT6B120-0550	Coated​	316 SS	12 mm	550 mm	0.350 mm	163 mm	250 lbs​
KT6B120-0600	Coated​	316 SS	12 mm	600 mm	0.350 mm	179 mm	250 lbs​
KT6B150-0500	Coated​	316 SS	15 mm	500 mm	0.350 mm	147 mm	325 lbs​
KT6B150-0600	Coated​	316 SS	15 mm​	600 mm	0.350 mm	179 mm	325 lbs​
KT6B150-0700	Coated​	316 SS	15 mm​	700 mm	0.350 mm	211 mm	325 lbs​
KT6B150-0800	Coated​	316 SS	15 mm​	800 mm	0.350 mm	243 mm	325 lbs​
KT6B150-08900	Coated​	316 SS	15 mm​	900 mm	0.350 mm	274 mm	325 lbs​
KT6B150-1100	Coated​	316 SS	15 mm​	1100 mm	0.350 mm	338.2 mm	325 lbs​
