Boddingtons Electrical Cable Preparation Tools Supplied To Narec (National Renewable Energy Centre)

By Chris Dodds on 25th July, 2012

Follow @ThorneanDerrick



Cable Jointing & Terminating

Boddingtons Electrical Cable Jointers Tools

Narec Contractors Order Boddingtons



Thorne & Derrick continue to support the renewable energy sector by supplying LV-HV cable contractors and training centres with high voltage cable stripping, preparation and jointing tools. Narec (National Renewable Energy Centre) contractors made an order for Boddingtons Electrical cable jointers tools.

Pictured: Narec National Renewable Energy Centre, Blyth North East

Narec has invested over £150 million to create UK’s national translational research centre for accelerating the deployment of offshore renewable energy technologies. The multi-disciplinary team of scientists and engineers operate some of Europe’s largest translational research, development and testing facilities for offshore wind, wave, tidal and electrical network technologies.

Clients and collaborators include: project developers, utilities, major manufacturers, universities, research organisations and supply chain companies.

Boddington Electrical 244400 tool is for the stripping of peelable ("easy-strip") semi-conductive screens from 33kV single core XLPE power cables. The 244410 stripping tool has a maximum rotating diameter of 130mm and the incision depth can be adjusted from 0 to 0.9mm with 0.1mm trips each by turning the corresponding knob.

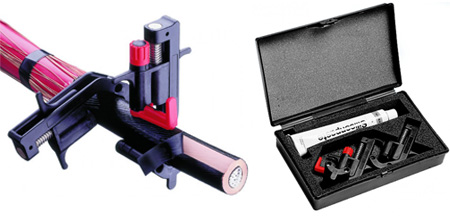

Pictured: Boddingtons 244400 Stripping Set for Peelable Semi Conductive Screen Ø 16 to 41mm

Boddingtons Electrical 244400 Stripping Tool Set Features

• To strip the non-vulcanized semiconductive layer of MV cables
• Longitudinal, helical and circular cuts
• Positioned on the cable like a vice
• Stop clamp to limit the stripping length
• The positioning of the stripper and holding of stop-clamp is assured by the pressure of the stripping
• The longitudinal and circumferential incision can be performed in one action
• Application range: 16 - 41mm
• Insulation thickness: 0 - 2mm

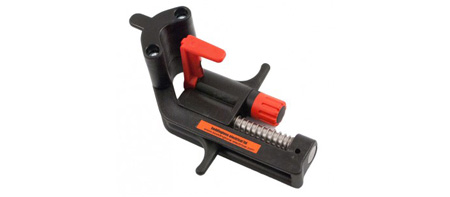

Pictured: Boddingtons 244410 Stripping Tool for Peelable Semi Conductive Screen Ø16 - 41mm

Boddingtons Electrical 244400 Tool Set Specifications

Part No	Description	Weight
Boddingtons 244400	Stripping set for peelable semi conductive screen (3 piece)	400g
Boddingtons 244410	Stripping tool for peelable semi-conductive screen	100g
Boddingtons 244411	Stop clamp for use with 244410	75g
Boddingtons 244412	Replacement blade for 244410	10g
Boddingtons 244702	Silicone paste for use with 244410	100g



Require 33kV cable stripping tools for fully bonded semi-conductive screened cables? Then you need - Boddingtons 244700.

Boddingtons Electrical 244700 shaving tool is designed to remove the vulcanised semi conductive layer from cross-wired polyethylene (XLPE) MV cables with diameters from 10 to 52mm. The 244700 tool has been designed for easy usage. To begin shaving just position the tool at the point where you want to start, adjust the depth of cut and then move the tool around the cable using the handle.

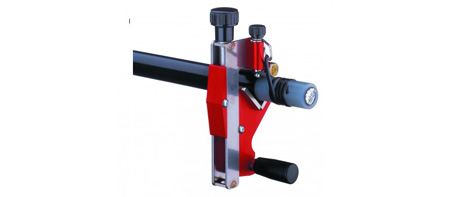

Pictured: Boddingtons Electrical 244700 Shaver for Semi Conductive Screen Ø 10 to 52mm

Boddingtons Electrical 244700 Shaving Tool Features

• Max. rotating diameter 200mm
• Interchangeable blade
• Application range: Ø 10 - 52mm
• Insulation thickness: 0 - 1.5mm

Boddingtons Electrical 244700 Tool Set Specifications

Part No	Description	Weight
Boddingtons 244700	Shaver for bonded semi-conductive screen (supplied in plastic case)	1345g
Boddingtons 244701	Replacement blade for 244700 (17°)	5g
Boddingtons 244702	Silicone Paste for use with 244700	100g
Boddingtons 244703	Replacement blade for 244700 (8°)	20g
Boddingtons 244706	Spares Kit for 244700 Cylinder/ Plates	10g
Boddingtons 128930	Replacement plastic case for 244700	100g
Boddingtons 244710	Set consisting of: 244700 / 244702 / 128930 + Instructions	1445g
Boddingtons 244100	Preparation Kit for 11kV-XLPE Insulated Cable - (in plastic case)	2510g



• Further Reading

Boddingtons Cable Jointers Tool Kits

Bonded Semi-Con Screen Removal Using The GB-P20 Cable Jointers Tool
