33kV Cable Jointers Tools As Recommended By A 33kV Jointer



Cable Jointing Tools LV-HV

Ripley Utility Tool Cable Preparation Tools





Not a week goes by without T&D being asked by cable contractors and jointers to recommend a tool-set for 33kV jointing.

As specialist Medium Voltage Cable Tooling distributors for Alroc, Boddingtons, Ripley, Pfisterer and Cembre, T&D are perfectly placed to provide an impartial recommendation for a variety of jointing tools from leading manufactuers.

Often the selection of cable tools is a jointer preference decision.

Nevertheless, 3 essential jointing tools to cover the main stages of medium voltage cable preparation include :

  • Cable Outersheath Remover/Stripper
  • Cable Insulation Removal
  • Semi-Conductive Screen Remover

In todays Blog, we have actually engaged with the "frontline" and drawn from the experience and expertise of a cable jointer.

Richard Mason, is well known in the HV and EHV cable jointing and installation field, you can check out his impressive skill-set via his LinkedIn Profile.

So we asked Richard which cable tools he would recommend to prospective 33kV cable jointers and here is what he suggested :



1. 33kV XLPE Insulation Removal - Ripley WS50Ripley Tools

Ripley WS50 covers 12.7 to 57.15mm cable O.Ds.

This corresponds to an insulation removal range of 70-500sqmm for single core 33kV XLPE cables according to BS7870. Ripley WS50A features an adjustable strip stop bar giving an exact stripped conductor length and can be rotated to allow unlimited cable stripping.

Pictured: Ripley WS50 33kV Jointing Tool

Ripley WS50



2. 33kV Screen Removal - Alroc 8YR0-ASC40R2Alloc Cable Jointing Tools

Alroc 8YRO-ASC40R2 bonded semi-conductor screen removal tool (38-60mm) is ideal for 33kV cable jointing and terminating. Used extensively by jointers for stripping the bonded screen from XLPE insulated cables.

The robust Alroc cable tool features an adjustable handle for jointer comfort with lockable blade depth.

Pictured: Alroc ASC40R2 Bonded Semi-Conductor Screen Removal Tool
Alroc Bonded Semi-Conductor Screen Removal Tool ASC40R2



3. 33kV Outer Cable Sheath Removal - Alroc 8YRO-PG3 & 8YRO-PG4 Alloc Jointing Tools

Alroc sheath strippers have been universally adopted by MV-HV cable jointers for the quick and precise removal of the PVC outersheath from 33kV power cables.

Pictured: Alroc PG4 Cable Sheath Stripping Tool

Alroc sheath strippers



4. 33kV Universal Plastic Sheath Strippper - Boddingtons 244510 Boddingtons Electrical Cable Jointing Tools

This plastic cable sheath stripper is used to strip the outer sheath from both LV and MV cables providing longitudinal and circular cuts.

The jointers tool is designed to strip both ends and midspan sections of 33kV cables.

Pictured: Boddingtons 244510 Cable Sheath Cutter

Boddingtons Cable Sheath Cutter



Richard Mason - EHV Cable Jointer / Client Rep (Onshore & Offshore Jointing) up to 132kV

Richard is Certified to install 3M, Nexans, Pfisterer, Tyco, NKT, Shrink Polymer Systems and ABB cable jointing and terminating systems.

Typical Duties Include:

  • Lead cable jointer/supervisor up to 132kV cables
  • Providing support for MV, HV & EHV jointers
  • Constructing and maintaining both oil filled and XLPE cables for faults and services
  • Working completing high voltage cables work on a variety of different projects with different clients/companies in a wide range of environments.
  • Responsible for implementing/following Health and Safety and Quality Regulations and procedures throughout works.
  • Experienced in completing site records
  • Daily interfacing with the clients, local authorities and general public and working under different disciplines

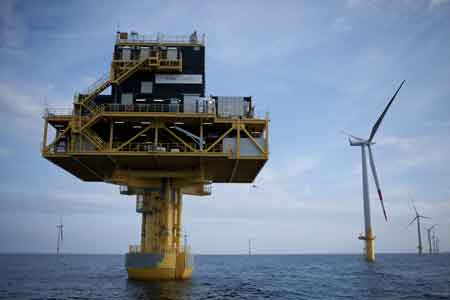

Pictured: Baltic 2 OWF Feeds First kWh into Grid. Image : Offshorewind.Biz.

Richard Mason was EHV Lead Cable Jointer and Client Rep on the Baltic 2 offshore windfarm.

Wind Farm Cable Jointers 33kV
