Cable Pulling Machine - Southwire Maxis XD10 EXTREME Duty Cable Puller

By Chris Dodds on 21st April, 2017

Follow us on LinkedIn

The Southwire Maxis XD10 EXTREME Duty Cable Puller is a cable pulling machine designed to get the job done, thriving in the most extreme pulling conditions - XD10 allows you to pull cable faster and safer up to 10,000 lbs.

Designed and manufactured in the USA by Southwire, distributed in the UK by Thorne & Derrick - contact us for further information or to discuss a potential cable pulling application.

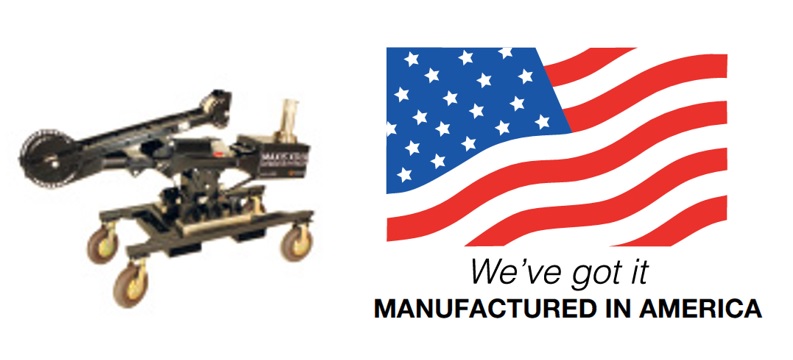

Cable Pulling Machine Manufactured In America

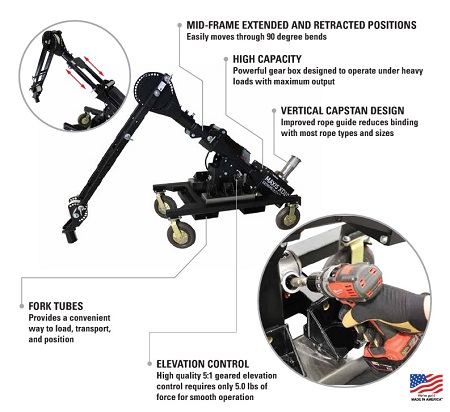

 Southwire Maxis XD10 Cable Puller - Features

  • 10,000 lbs peak cable pulling force with a continuous pulling rating of 7,000 lbs
  • High capacity: powerful gear box designed to operate under heavyloads with maximum output
  • Self contained: ready to pull cable with no need for additional parts to use for set up
  • Single person set up and operation: quickly adapts from underground cable to overhead pulls
  • Smooth elevation control: operates with handle or 18V cordless drill to eliminate cable lifting
  • Collapsible down to 40"H x 26"W x 70"L for ease of transport and site location

Cable Pulling Machine - Southwire Maxis XD10 EXTREME Duty Cable Puller

Southwire Maxis XD10 EXTREME Duty Cable Puller - Technical Specification
Southwire Model Cable Puller Description Height Width Length Weight
XD10 Maxis XD10 EXTREME Duty Cable Puller 40" 26" 70" 598 lbs
XD-10-BD XD10-BD Maxis XD10 Bolt Down Kit 18" 14" 16" 35 lbs



Capacity - Cable Pulling Speed Low:

  • At 2,000 lbs 11fpm
  • At 4,000 lbs 10fpm
  • At 6,000 lbs 9fpm
  • At 7,000 lb 8fpm
  • At 10,000 lbs. 7fpm

Cable Pulling Speed High:

  • At 2,000 lbs 20fpm
  • At 4,000 lbs 18fpm

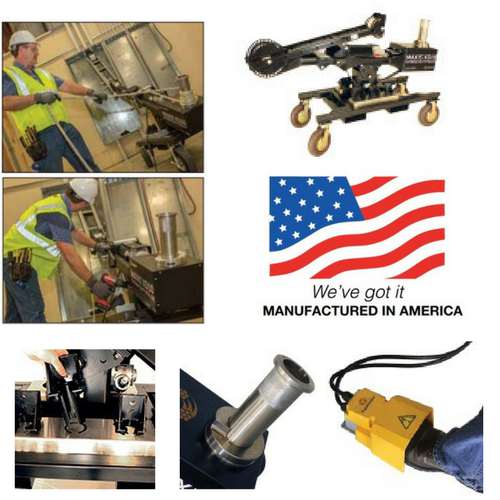

Cable Pulling Machine - Southwire Maxis XD10 EXTREME Duty Cable Puller



  • Further Reading

Cable Laying & Pulling - Installing LV-HV Cable In Duct (Part 1 of 2)

Cable Laying & Pulling - Installing LV-HV Cable In Trench (Part 2 of 2)

A Photoblog : 138kV Southwire Cable Pull & Termination by Allteck Contractors



Southwire

Southwire is one of the world’s leading developers, manufacturers and suppliers of building wire and utility cable, as well as the cable tools used in their installation. As such, Southwire is continually improving its products, studying how they’re used in the field and assessing the needs of its customers to find new and better ways to solve the problems facing the industry.
