SPS Zero Halogen Flame Retardant Cable Joints Provided For LV Cabling Projects At London Underground

By Chris Dodds on 13th July, 2012

Follow @ThorneanDerrick

London Underground (LU)

Fire Proof Cable Joints

Cable Joints Fire Tested & Compliant with LUL Specification 2-0100-002

SPS Low Voltage Zero Halogen Cable Joints for limited Fire Hazard Cables

Thorne & Derrick continue to supply SPS (Shrink Polymer Systems) LU Approved Cable Joints to ongoing low voltage cabling projects at London Underground. Shrink Polymer Systems SPANHF range of cable joints have been developed for London Underground, for use within tunnels and above surface.

The SPS SPANHF range of heat shrink cable joints feature zero halogen and flame retardant properties, with optional fire resistance, for the power jointing of LV cables either trackside, sub-surface or within the tube tunnels.

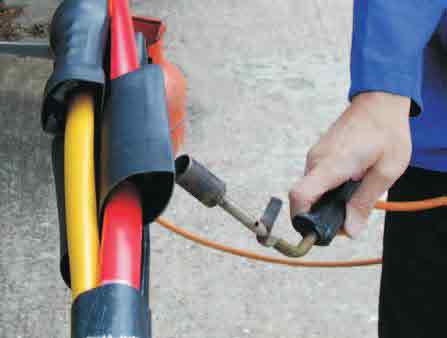

Pictured: SPS SPANHF Heat Shrink Cable Jointing Kits

SPS SPANHF LV Zero Halogen Heat Shrink Cable Jointing Kits Features

• Fire tested and compliant with London Underground standards 2-0100-002 or the fire safety of materials and E4156 for the cable standard
• Slim profile and unlimited shelf life complete with range taking mechanical shearbolt connectors if required
• Full range of joints available for all cable types including power and multicore cables

SPS SPANHF Cable Joint Range Specifications

Joints to Suit Single or 2/3/4 Core XLPE / EPR Cables
Part Number	Cable Range	Voltage
SPS SPA NHF 1.5-2.5 –	1.5mm² - 2.5mm²	600/1000V
SPS SPA NHF 4-6 –	4mm² - 6mm²	600/1000V
SPS SPA NHF 10-16 –	10mm² - 16mm²	600/1000V
SPS SPA NHF 25-50 –	25mm² - 50mm²	600/1000V
SPS SPA NHF 70-95 –	70mm² - 95mm²	600/1000V
SPS SPA NHF 120-185 –	120mm² - 185mm²	600/1000V
SPS SPA NHF 240-300 –	240mm² - 300mm²	600/1000V
SPS SPA NHF 400-630 –	400mm² - 630mm²	600/1000V
SPS SPA NHF 800-1000 –	800mm² - 1000mm²	600/1000V
Joints to Suit Multicore / Multipair XLPE / EPR Cables
SPA NHF 1.5-2.5-5	5 core 1.5mm² - 2.5mm²	600/1000V
SPA NHF 1.5-2.5-7	7 core 1.5mm² - 2.5mm²	600/1000V
SPA NHF 1.5-2.5-12	12 core 1.5mm² - 2.5mm²	600/1000V
SPA NHF 1.5-2.5-19	19 core1.5mm² - 2.5mm²	600/1000V
SPA NHF 1.5-2.5-27	27 core 1.5mm² - 2.5mm²	600/1000V
SPA NHF 1.5-2.5-37	37 core1.5mm² - 2.5mm²	600/1000V
SPA NHF 1.5-2.5-48	48 core 1.5mm² - 2.5mm²	600/1000V
SPA NHF 1.5-2.5-61	61 core 1.5mm² - 2.5mm²	600/1000V



• Further Reading

Video Training : Installing Rail Cable Joints (Heat Shrink Zero Halogen) - LU & Network Rail
