T&D Supply Scottish Power Development Training Centre With SEB Hydraulic Cable Drum Lifting Jack

By Chris Dodds on 23rd July, 2012

Follow us on LinkedIn

T&D Supply Scottish Power Development Training Centre With SEB Hydraulic Cable Drum Lifting Jack

Cable Laying & Cable Pulling

Hydraulic Cable Drum Jacks



T&D have supplied 15 sets of SEB HJ6 Hydraulic Cable Drum Lifting Jacks to the Scottish Power Development Training Centre at Cumbernauld, Scotland.

The Scottish Power Training Centre hosts an ongoing programme of LV-HV training courses for cable jointers and overhead linesmen with topics including:

  • Electrical Safety Tower Training
  • 17th Edition Low Voltage
  • High Voltage Operations
  • High Voltage Electrical Safety
  • Cable Avoidance - Cat & Jenny
  • HSG47 Avoiding Underground Cables
  • LV Jointing
  • Service Cable Jointing
  • 11kV Jointing & 33kV Jointing

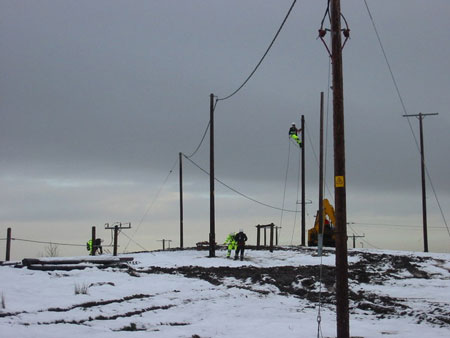

Pictured: Overhead Line Training At Scottish Power Training School

Overhead Line Training At Scottish Power Training School

The cable drum jacks are to be used for lifting low voltage and high voltage cable drums to enable the Scottish Power Training Centre to carry out cable jointer training.

SEB lightweight hydraulic drum jacks are versatile and easily adjustable with fitted wheels so the drum can be easily moved by one person.

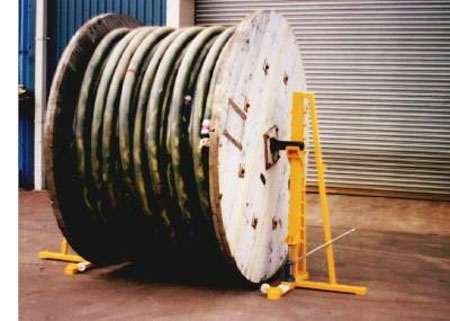

Picture: SEB Hydraulic Cable Drum Jack

SEB Hydraulic Cable Drum Jack



SEB Hydraulic Cable Drum Lifting Jacks Specifications

Model

Capacity/Pair

Drum Diameter

Base Area

Weight/Pair
Min Max
SEB HJ3

3 Tonnes SWL

800mm

2500mm

830mm x 700mm

106kg

SEB HJ6

6 Tonnes SWL

880mm

3000mm

900mm x 765mm

118kg
SEB HJ10

10 Tonnes SWL

1080mm

3500mm

1060mm x 985mm

180kg



Scottish Power Training Courses



33kV Jointing Course Details Follows - To Book Contact
