CTL Mains Branch LV Resin Cable Joints - CBM Range

By Chris Dodds on 20th August, 2012

Follow @ThorneanDerrick

LV Resin Cable Joints

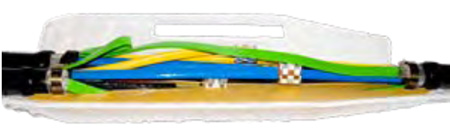

CTL Mains Branch Cable Joints - CBM Range



CTL CBM Range of low voltage resin cable joints are suitable for PVC or XLPE cable of up to 1kV.

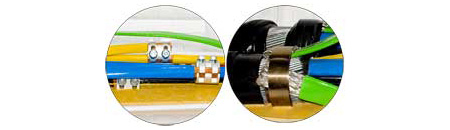

Pictured: CTL Mains Branch Joints CBM Range Of Cable Joints

CTL Uncut Main CBM Cable Joints Specifications (Armoured & Unarmoured Cable)

Part No Inc Mechanical Connectors	Uncut Main Cable 2, 3 & 4 Core	Max Branch Cable 2, 3 & 4 Core
CTL CBM0+C	50mm² - 70mm²	70mm²
CTL CBM1+C	95mm² - 120mm²	120mm²
CTL CBM2+C	150mm² - 185mm²	185mm²
CTL CBM3+C	240mm² - 300mm²	300mm²

CTL Cut Main CBM Cable Joints Specifications (Armoured & Unarmoured Cable)

Part No Inc Mechanical Connectors	Cut Main Cable 2, 3 & 4 Core	Max Branch Cable 2, 3 & 4 Core
CTL CBM1.5+C	1.5mm² - 35mm²	35mm²
CTL CBM2.5+C	50mm² - 150mm²	150mm²
CTL CBM3.5+C	185mm² - 300mm²	300mm²
