Alroc CMF2/NP High Voltage Cable Jointers Tool Kits

By Chris Dodds on 18th February, 2013

Follow @ThorneanDerrick



High Voltage Jointers Tools

Alroc Cable Preparation Tool Kits



T&D have been supplying specialist HV Cable Jointers with Cable Preparation Tool Kits manufactured by Alroc. The 3-in-1 tool kits enables the removal of the outer cable sheath, bonded-semi conductor screen and insulation from high voltage power cables.

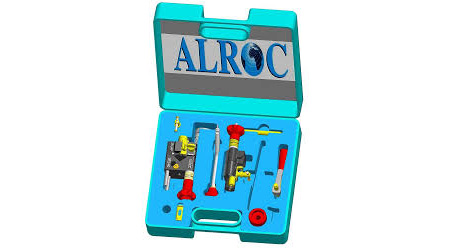

HV jointers can employ the tool kits on 11kV and 33kV cables, 25sqmm-630sqmm prior to the fitting of high voltage heat shrink or cold shrink cable joints or terminations. The HV jointers tool kit comes supplied with a carrying case for safe and contained storage.

Alroc CMF2/40 NP and CMF2/60 NP allow the removal of cables outer sheath, bonded semiconductor and insulation.

Alroc CMF2/40 NP and CMF2/60 NP Specifications

Model	CMF2/40NP	CMF2/60NP
MF2 Diameter	16mm - 40mm	16mm - 58mm
ASC Diameter	18mm - 44mm	20mm - 58mm
Sections	25² - 240²	50² - 630²
Weight	2,700kg	3,200kg
