6.6kV 3 Core Cable Breakout Using 3M Scotch Tapes

By Chris Dodds on 11th March, 2016

Follow @ThorneanDerrick

Image: Pete Thomasson - HV Cable Jointer / Linesman

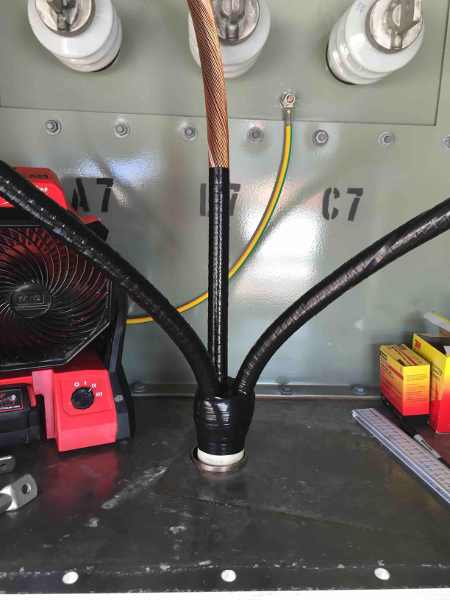

Pictured: 6.6kV 3 Core Cable Breakout Using 3M Scotch Tapes





3M Scotch Tapes used include 3M 33+ Vinyl, 3M 2228 Mastic Tape and 3M 2229 Mastic Seal.

The cable jointer reverted to a taped cable breakout solution due to difficulty sizing rejacketing sleeves to insulate and protect the cable cores.

T&D are 3M UK's largest stockist of their range of Scotchcast and Cold Shrink cable joints, terminations and abandonment kits for industrial and hazardous area installations.

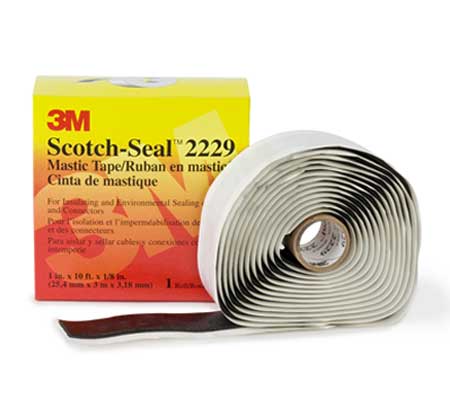

Pictured: 3M Scotch 2229 Mastic Tape

3M Scotch-Seal 2229 Mastic Tape Applications

• Sealing high voltage cable splice and termination accessories
• Insulating electrical connections rated up to 1000 volts
• Padding irregular shaped connections
• Providing corrosion protection to a wide variety of electrical connections
• Sealing ducts and cable end seals
• Sealing against dust, soil, water and other environmental conditions
