3M Temflex 1700 General Purpose Vinyl Insulating Electrical Tape

By Chris Dodds on 31st July, 2012

Follow @ThorneanDerrick

3M Scotch Electrical Tapes

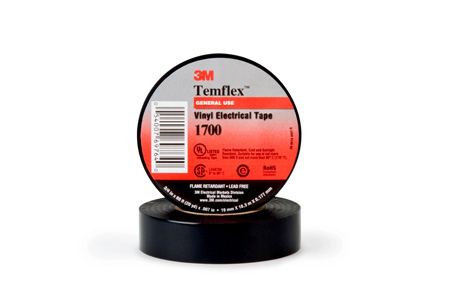

3M Temflex 1700 Electrical Tape



3M Temflex Vinyl Electrical Tape 1700 used for protective jacketing and harnessing. 3M Temflex 1700 tape has excellent resistance to: abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions. UL Listed and CSA Certified for 176°F (80°C).

3M also offer Temflex 2155 low voltage rubber vinyl insulating splicing tape

3M Temflex Vinyl Electrical Tape 1700 Applications

• Primary electrical insulation for most wire and cable splices rated up to 600 volts
• Protective jacketing for high voltage cable splices and repairs
• Harnessing of wires and cables
• For indoor or outdoor applications
• For above or below ground application



3M Temflex 1700 Vinyl Electrical Tape Specifications

Thickness	0.18 mm
Adhesion	2.4 N/cm
Operating Temperature	80°C (176°F)
Breaking Strength	30 N/cm
Adhesive Material‎	Rubber Resin
Approvals	ASTM D 2301 Type 1,‎ MSHA Approved,‎ CSA,‎ CSA Certified,‎ UL Listed
Application/Industry	Industrial Construction Residential Construction Maintenance and Repair Operations Communications Automotive and Marine Irrigation Commercial Construction Mining Appliance and Fixture Wind Power Solar Utility
Colour	Black
Length‎	13.41m,‎ 32.92m,‎ 20.11m
Width	25.4mm,‎ 38.1mm,‎ 19.05mm
Voltage Application‎	Low Voltage
