3M Temflex 2155 Low Voltage Rubber Vinyl Insulating Splicing Tape

3M Scotch Electrical Tapes

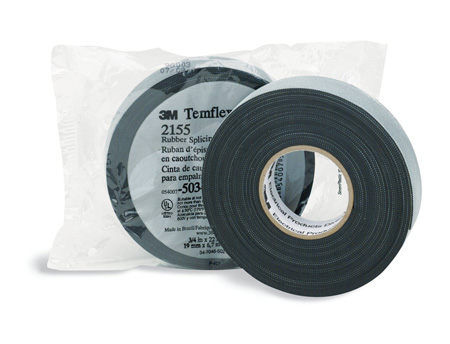

3M Temflex 2155 Splicing Tape



3M Temflex Rubber Splicing Tape 2155 is an economical low voltage rubber vinyl insulating tape that is self-fusing. 3M Temflex Rubber Splicing Tape 2155 is used for insulating wire splices, split bolt connections and motor leads up to 600V.

3M also offer a 3M Temflex 1700 general purpose vinyl insulating electrical tape.

3M Temflex 2155 Rubber Splicing Tape

Features
  • UL listed, File E129200
  • Compatible with solid dielectric cable insulations
  • Self-fusing tape
  • Flexible over a wide temperature range

Applications
  • Insulate electrical connections up to 600 V
  • Seal out moisture from low-voltage connections
  • Insulate service drops
  • Insulate lighting connections
Specifications
  • 3M Temflex 2155 tape must be rubber based and capable of operating at temperatures up to 80°C
  • The tape must not split or crack when exposed to normal operating temperatures
  • The tape must be compatible with synthetic cable and wire insulations
  • The tape shall not be corrosive to aluminum, or copper conductors
  • The tape shall be 30 mils thick and comply with the requirements of UL 510 for rubber insulating tape



3M Temflex Linered Splicing Tape 2155



3M Temflex Linered Splicing Tape 2155 Technical Data

Colour

Black

Temperature Rating

176°F (80°C)

Thickness

0.76 mm

Tensile Strength

2,07 N/mm²

Dielectric Breakdown

23.6 kV/mm
