3M Silicone Wet Type Cable Terminations 115kV

By Chris Dodds on 12th October, 2015

Follow @ThorneanDerrick

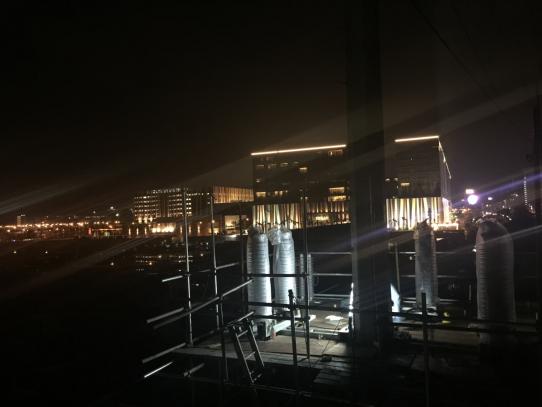

Image : Glen Cambri (Technical Services Engineer at 3M Philippines Inc).

Pictured : 3M Silicone Wet Type Cable Terminations 115kV

T&D stock an extensive range of 11kV-33kV 3M Cold Shrink Joints & Terminations for the jointing, terminating and abandonment of medium voltage power cables.

T&D are 3M UK's largest stockist of their range of Scotchcast and Cold Shrink cable joints, terminations and abandonment kits for industrial and hazardous area installations.

Description • Self-supporting, outdoor cable termination with silicone insulator.

Applications • Conductor size up to 2,000 kcmil (1,200sqmm) • Can accommodate a variety of pollution classes and lengths • Maximum installation angle of 30°.

Features • One-piece pre-molded silicone stress cone • Light-weight construction, approximately 1/3 the weight of most porcelain high voltage cable terminations • Easier handling, transportation and installation than porcelain insulator • Hydrophobic silicone materials provide excellent environmental performance • Smooth surface enables self-cleaning properties • Less sensitive to earthquakes, vibrations and thermal variations • Internal shear bolt connection eliminates need for crimp-type connections.



• Further reading

33kV Cable Jointing Using 3M QS2000 Cold Shrink Joints On Rail Power Cables

3M Cold Shrink 25kV Straight Joint & Cable Termination

3M QTIII Cold Shrink Cable Terminations (33kV/6.6kV Step-Down - XLPE Single
