3M Scotch 69 Electrical Tape - Glass Cloth Tape With Silicone Pressure Sensitive Adhesive

By Chris Dodds on 31st July, 2012

Follow @ThorneanDerrick

3M Scotch Electrical Tapes

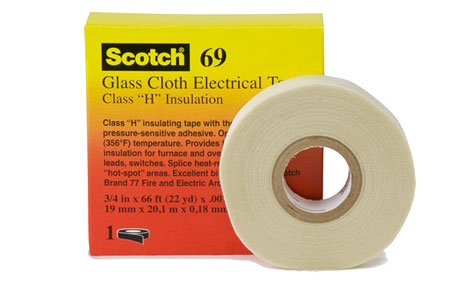

3M Scotch 69 Glass Cloth Tape



Scotch Glass Cloth Tape 69 is edge-tear resistant conformable, high-temperature flame resistant adhesive tape for use as a coil cover, anchor, for banding and core, layer and crossover insulation.

3M Scotch 69 Glass Cloth Electrical Tape is a 0.177mm thick, white glass cloth tape with a high temperature thermosetting silicone adhesive. The thermosetting adhesive provides an increased bond once applied in areas of high ambient temperatures. 3M Scotch 69 Tape is UL recognized for continuous use up to 200°C - it conforms to Military Specification No. MIL-I-19166C.

3M Scotch 69 Glass Cloth Tape Applications

• Insulating electric and induction type furnace power supply leads
• Securing high temperature, non-PSA insulations (such as asbestos and glass) in high temperature areas
• To fire and arc proof control cables when high energy power cables are present
• To provide additional electrical insulation, thus reducing possibilities of transferred arcs
• To be used in conjunction with 3M Scotch 77 Arc & Fire Protection Tape for arc and fire proofing applications



3M Scotch 69 Glass Cloth Electrical Tape Specifications

Colour	White
Thickness	0.177mm
Temperature Range	200°C
Standards	UL recognized for continuous use up to 200°C. It conforms to Military Specification No. MIL-I-19166C, RoSH complaint
Backing (Material Type)	Glass Cloth
Elongation	5%
Width x Length	6mm x 33m 9mm x 33m 12mm x 33m 15m x 33m 19mm x 33m 25mm x 33m 38mm x 33m 38mm x 33m 50mm x 33m
Dielectric Strength	3000V
Breaking Strength	1500 PSI
Thermal Conductivity	23°C – .078 BTU/hr./ft. °F
Adhesion to Steel	40 oz/in (4.4 N/10mm)
Adhesion to Backing	40 oz/in (4.4 N/10mm)
Flame Retardant	Self Extinguishing
