3M Scotch 2510 & 2520 Electrical Insulating Varnished Cambric Tape

3M Scotch Electrical Tapes

3M Scotch 2510 & 2520 Tape



3M Scotch Varnished Cambric Tapes are made from straight-cut woven cotton cambric fabric which is oil primed and coated with a high-grade yellow electrical insulating varnish.

  • 3M Scotch 2510 tape is yellow, non-adhesive coated and 7 mils thick
  • 3M Scotch 2520 tape is yellow with a pressure-sensitive adhesive and 8 mils thick

Varnished Cambric Tapes 2510 and 2520

The Varnished Cambric Tapes are designed to perform continuously in temperatures up to 105°C (220°F) with excellent resistance to abrasion, puncture and cut-through. The adhesive on 2520 tape holds the tape in position after application.

Benefits
  • Excellent dielectric strength
  • Electrical properties are stable up to 105°C
  • High puncture and cut-through resistance
  • Varnish cambric tapes are rated for Class A (105°C)
  • Non-corrosive adhesive on 2520 tape. Adhesive holds film in position until the jacket is applied
Applications
  • For insulating joints requiring rapid and clean re-entry such as motor lead and service drop connections, heavy split-bolts in raceways and bus bar insulating
  • Use in areas where mechanical protection and puncture resistance is critical

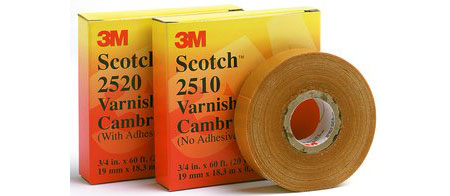

3M Scotch Varnished Cambric Tape 2510 & 2520



3M Scotch Varnished Cambric Tapes 2510 & 2520 Data
Tape

3M 2510 Tape

3M 2520 Tape

Colour

Yellow

Yellow

Surface Finish

Dry

Dry with adhesive

Thickness (ASTM-D-374)

7 mils

8 mils

Tensile Strength (ASTM-D-295)

50 lbs/in

50 lbs/in

Adhesion to Steel (ASTM-D1000)

-

13 oz/in

Adhesion to Backing (ASTM-D1000)

- 8 oz/in

Dielectric Strength (ASTM-D-295)

800 V/mil

800 V/mil

Thermal Stability

Class A Class A

Solvent Resistance

Excellent

Excellent

Oil Resistance

Excellent Excellent
