3M Scotch 13 Electrical Semi Conducting Tape For High Voltage Connections

By Chris Dodds on 31st July, 2012

Follow @ThorneanDerrick

3M Scotch Electrical Tapes

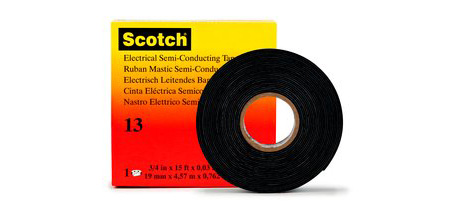

3M Scotch 13 Tape



Scotch 13 Electrical Semi Conducting Tape is used for high voltage connections and provides cable shield continuation. 3M Scotch 13 Tape is a highly conformable, semi-conducting EPR (Ethylene Propylene Rubber) based high-voltage splicing tape.

Features	Semi-conducting (low resistivity) Retains conductivity with strength Elongates easily to conform to irregular shapes Stable at elevated temperatures (130°C / 266°F) Compatible with most solid dielectric cable insulations and conductors Excellent resistance to cracking or checking from solvents, UV, or moisture Compatible with high-voltage splicing and terminating materials Usable for indoor or outdoor applications Meets requirement of ASTM-D-4388, Type IV
Applications	Replace semi-conducting layer beneath metallic shield in various medium-voltage cable repairs and splices Electrically round-out high-voltage connectors and bond to insulating materials to minimize electrical stresses Round-out bolted connections on insulated bus bars Provide shielding for cable splices on solid dielectric insulated power cables Not to be used for electrical insulation
Specifications	Scotch Electrical Semi-Conducting Tape 13 must be based on ethylene rubber and be capable of operation at the emergency cable temperature of 130°C It must be usable without covering, both indoors and outdoors, in a highly stretched condition, without splitting or cracking It must be compatible with all common solvents, adhesives, and high-voltage splicing and terminating insulations Must not adversely affect semi-conductive cable jackets

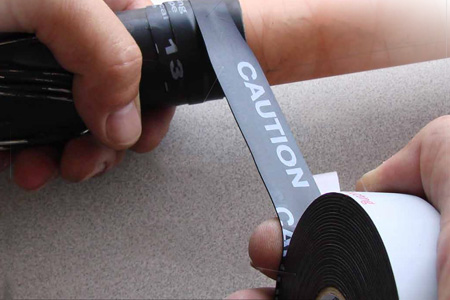

3M Scotch 13 Semi-Conducting Tape Installation

Scotch 13 tape is usually wrapped in half-lapped layers. Highly elongate Scotch 13 tape when over wrapping cable connectors, terminal lugs and near edges of cable metallic shield, semi-conducting cable tape and semi-conducting cable jackets.

Note: Stretching Scotch 13 Tape increases its conductance and will not harm it in any way. Caution : Scotch 13 Tape is not oil resistant - it should not be used in splicing and terminating cables which contain oil or slippery compounds as part of dielectric such as PILC.





Further Reading:

Electrical Taping Skills : A Lost Art? Some 3M Scotch Taping Tips...

3M Scotch 27 Glass Cloth Tape

3M Mining Cable Joint Kit 3104 - Training Video
