33/36kV Raychem Oil Barrier Heat Shrink Termination Connects XLPE Cables Into VSLP9 Type Switchgear

By Chris Dodds on 28th January, 2016

Follow @ThorneanDerrick

Image: Craig Kilkenny - EHV Cable Jointer / Fitter

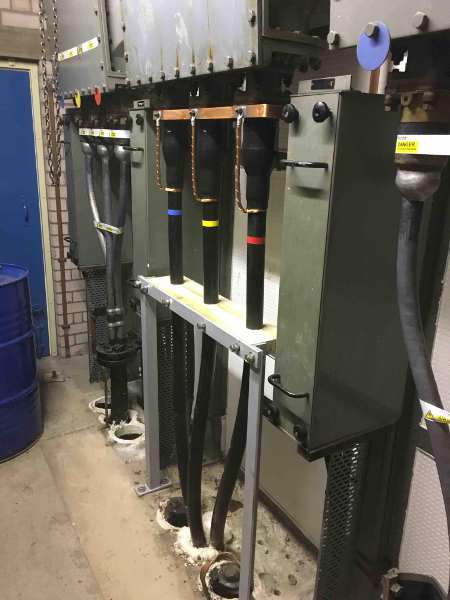

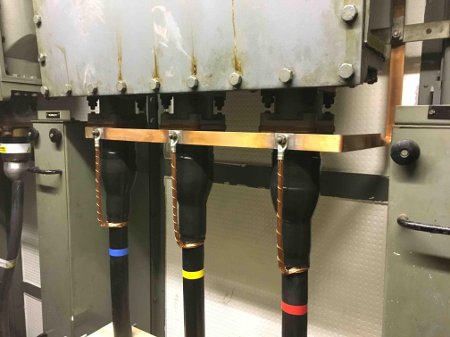

Pictured: 33/36kV Raychem Oil Barrier Heat Shrink Termination Connects XLPE Cables Into VSLP9 Type Switchgear

Comments from fellow cable jointers:

Jimmy Nicklin: "Nice job Craig Kilkenny. I did a nine bank of these 15 years ago and is quite the breakdown and remake to do."

Dean Wilson: "Nice neat work Craig Kilkenny and yes I agree Jimmy Nicklin it's getting the old oil out that's a job in itself!"

Andrew Brezovszky:  "Very neat!"
