145kV 3M Cold Shrink Cable Joint - Jointer Training Video

By Chris Dodds on 29th January, 2016

Follow @ThorneanDerrick

3M have developed a range of EHV transmission and distribution cable joints for repairing damaged or extending existing underground high voltage cables.

3M Cold Shrink cable joints are designed to fit a universal cable and can be kitted specifically to meet thehigh voltage application requirements of the utility. In addition to providing customers with a proven high voltage cable joint solution, 3M is committed to working closely with each customer to support the successful installation of each connection.

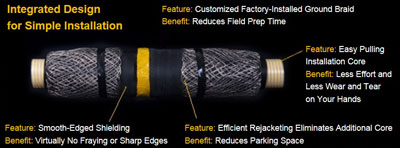

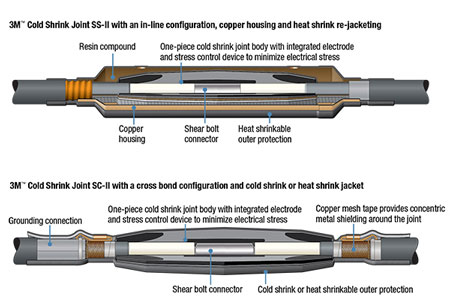

Pictured : 3M Cold Shrink 145kV Cable Joint



WATCH VIDEO : 3M Cold Shrink Joint 145 kV Inline (Straight Through) SS145-II



3M 145kV Cold Shrink Cable Joint - Features

• One piece 3M Cold Shrink cable joint body
• No special tool required for installation
• Shear bolt or crimp connector included with cable joint
• Connectors for round compacted or round segmented cable available
• Design accommodates different shielding and cable re‐jacketing systems
• Re‐jacketing with Cold Shrink, heat shrink or resin filled housing



• Further reading :

3M QS4 Cold Shrink Cable Joints - 3M Blockbuster Movie : The Jointers Joint....
