11kV Cables Jointed, Terminated & Earthed Into MIDEL Filled MV Transformers

By Chris Dodds on 21st April, 2017

Follow us on LinkedIn

11kV Cables Jointed, Terminated & Earthed Into MIDEL Filled MV Transformers

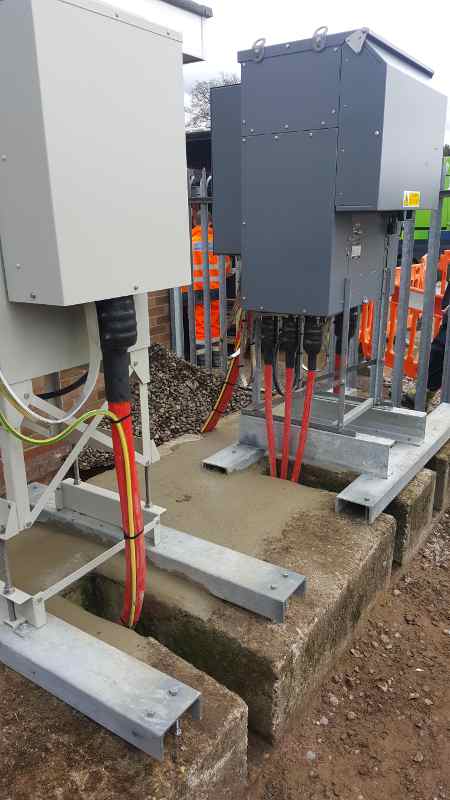

Pictured: 11kV Cables Jointed, Terminated & Earthed Into MIDEL Filled Transformers.


Image: Matthew Sibborn is an HV Engineer at SSE Contracting - over 10 years experience working in Electrical Distribution, including LV-MV maintenance and construction. Currently a trainee S.A.P up to 11kV on London Power Networks within UKPN. Matthew's goal is to become a S.A.P up to 132kV overhead and underground.

Connect with Matthew via his LinkedIn social profile.

MIDEL is a synthetic transformer oil used for medium-high voltage transformers to BS EN 61099:2010. Supplied in in 25 litre container with top handle for safe site handling by cable jointers, SAP's or HV electrical engineers when topping up transformers and switchgear.

11kV Cables Jointed, Terminated & Earthed Into Midel Filled Transformers
