T&D Supply Cable Terminations For Record Breaking PS70 Pumping Station Construction Project

By Chris Dodds on 29th February, 2012

Follow us on LinkedIn

T&D Supply Cable Terminations For Record Breaking PS70 Pumping Station Construction Project

HV Cable Jointing & Terminating

PS70 Pumping Station in Qatar

VINCI Construction Grands Projets



The world record breaking PS70 Pumping Station construction project has been supplied by T&D over a 6 month period.

Qatar PS70 Pumping Station Project Facts:

  • Over 1,200 people (at peak) from 23 different countries
  • 7 million working hours
  • 800,000 m³ earthworks
  • 53,000 m³ concrete
  • 46,000 tonnes of ductile iron pipelines
  • 16 pumps each with a capacity of 4,700m³ per hour
  • 18,000 kW of electrical power installed
  • 220km cables and fibre-optic network installed on a 2-hectare lot
  • 2,000 “ins and outs” managed by the SCADA

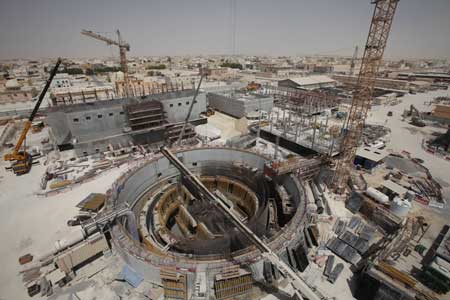

Pictured: PS70 Pumping Station - Qatar

PS70 pumping station in Qatar

PS70 pumping station is the largest such facility in the Middle East with a pumping capacity of 680,000m³ per day, which can be extended to 900,000 m³ per day. PS70 is designed to raise waste water in the northern sector of Doha, the capital of Qatar, from a depth of 40m, and channel it to a treatment plant located 25km away through a triple rising ductile iron main (1,600mm diameter).

This turn-key project worth approximately €360 million has been executed for the Government of Qatar as one of the country’s major infrastructure projects.



Thorne & Derrick supplied client VINCI Construction Grands Projets with:

38off - Prysmian HIT3XC11 11kV Heat Shrink Terminations Suit XLPE 3 Core 95-240sqmm

190off - SPS 3.3kV Heat Shrink Terminations Suit 3 Core 50sqmm XLPE Lead Sheathed Cable

252off SPS 3.3kV Heat Shrink Terminations Suit Single Core 50sqmm XLPE Lead Sheathed Cable

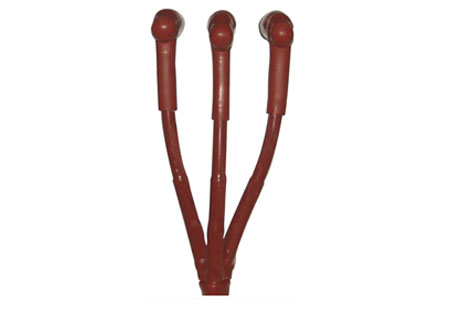

Pictured: Prysmian Heatshrink MV Terminations For 11kV Systems

Prysmian 11kV Heat Shrink Terminations

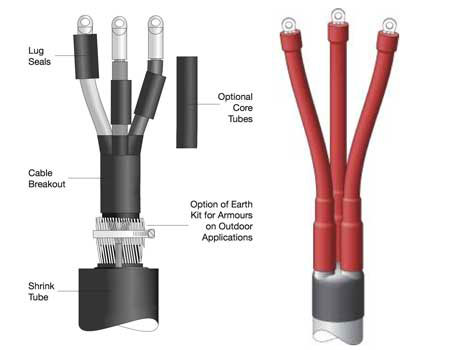

Pictured: SPS Heat Shrink Cable Terminations 3 Core XLPE/PILC up to 3.3kV

SPS 3.3kV Heat Shrink Terminations

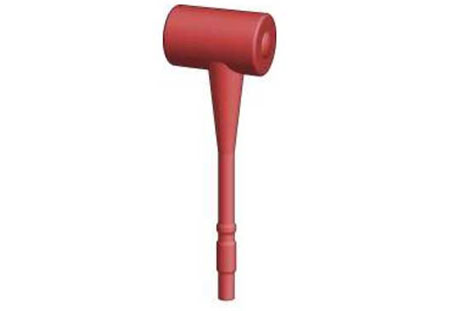

Pictured: SPS Single Core PILC/XPLE Heatshrink Terminations 1.9/3.6kV

SPS 3.3kV Heat Shrink Terminations Suit Single

Plus ancillaries including - several kilometres of 3M HDTA Heavy Duty Heat Shrink Tubing, Cembre LV Transformer Cable Lugs, WW Brass Wiping Glands, Prysmian Cable Cleats, Prysmian Cable Glands, Cembre HV Cable Lugs, 3M Scotch Insulation Tapes, 3M Scotch Self-Amalgamating Tapes, Honeywell Lighting, Cembre Crimping Tools and Die Sets for 10 cable jointing teams.

Ben Riley and Gary Amos managed the business ensuring critical construction timescales were met and supported by "on-time" deliveries for the overall project delivery.
