Marechal DXN ATEX Plugs and Sockets (Decontactors) :

• DXN1 (20amp), DXN3 (32amp) and DXN6 (63amp) ATEX plugs
• IP66 IP67 watertight plugs and sockets
• ATEX plugs and sockets
• Zone 1 and Zone 2 (gas) and Zone 21 and Zone 22 (dust) ATEX plugs
• Polyamide housings for shock impact resistance to IK 08
• Plug versions with 2 auxiliaries available

Marechal DXN ATEX Plugs and Sockets Range:

Marechal DXN1 Plugs - 20amp

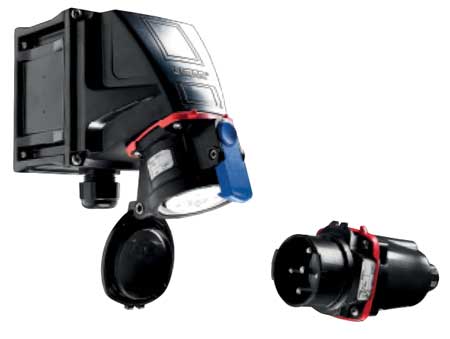

Marechal DXN3 Plugs - 32amp

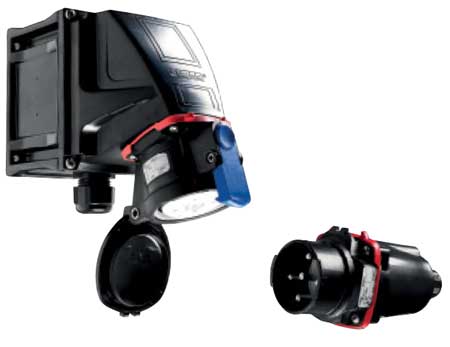

Marechal DXN6 Plugs - 63amp

Marechal DXN plug and socket outlets (decontactors) comply with ATEX hazardous area certification for use in explosive atmospheres including Zones 1 and 2 (gas) and Zones 21 and 22 (dust).

Marechal DXN ATEX certified hazardous area plugs and sockets are rated from 20-63amps, IP66/67 watertight ingress protection and with socket-outlet safety shutter providing IP4X protection.

DXN plugs and sockets comply with EN 50018 (explosion proof safety "d") EN 50019 (increased safety "e"), EN 50281-1-1 (electrical equipment for use in flammable dust atmospheres) and IEC 60309-1 (plugs and socket-outlets for industrial purposes) standards.

Marechal DXN - 20Amp, 32Amp, 63Amp Plugs & Sockets (ATEX)

Specification	Marechal DXN1	Marechal DXN3	Marechal DXN6
Rated Current (ln)	20A	32A	63A
Umax	550V	750V	750V
Auxiliary Contacts (Optional)	-	2	2
Keying Positions (To distinguish between different power supplies & applications)	24	24	24
Protection Mode	de and tb	de and tb	de and tb
ATEX Zones	Zones 1 & 2 (Gas), Zone 21 & 22 (Dusts)

Marechal DXN Plug Polarity Options

A full range of power plug options are available - contact T&D for other voltages, frequencies and contact configurations.

• 2P
• 3P+E
• 1P+N+E
• 3P+N+E

Marechal DXN Plugs & Power Distribution Systems

Marechal DXN decontactors (plug and socket outlets with integral power switch) are supported by an ancillary range of wall mounting sockets, wall boxes, socket outlets, sleeves, inlets and handles.
