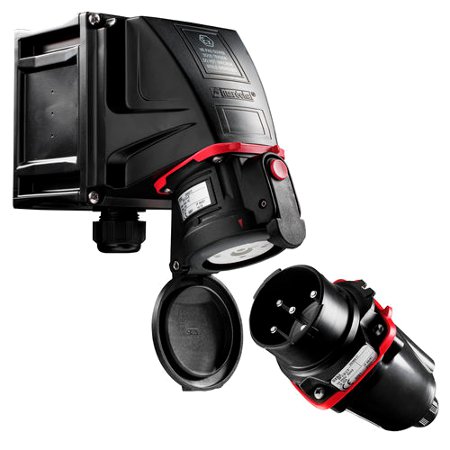

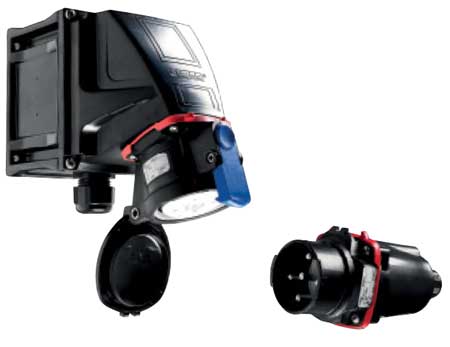

Marechal DXN6 Plugs & Sockets 63 Amp

Marechal DXN6 plug and socket outlets (decontactors) comply with ATEX hazardous area certification for use in explosive atmospheres including Zones 1 and 2 (gas) and Zones 21 and 22 (dust).

Marechal DXN6 ATEX certified hazardous area plugs and sockets (ATEX certified) are rated from 20-63amps, IP66/67 watertight ingress protection and with socket-outlet safety shutter providing IP4X protection.

DXN plugs and sockets comply with EN 50018 (explosion proof safety "d") EN 50019 (increased safety "e"), EN 50281-1-1 (electrical equipment for use in flammable dust atmospheres) and IEC 60309-1 (plugs and socket-outlets for industrial purposes) standards.

Marechal DXN6 63 Amp Explosion Proof Plugs & Sockets (ATEX) Zone 1 & 2 - Technical Specification

Rated Current (with wiring according to standard)	63A
Maximum Voltage	750V
IP Protection Lid Closed	IP66/IP67
IP Protection Connected Plug	IP66/IP67
Shock Resistance	IK09
Ambient Temperature	-40ºC to +60ºC
Flexible Wiring (Min-Max)	6sqmm - 16sqmm
Stranded Wiring (Min-Max)	6sqmm - 25sqmm
Other Wiring	On Request
Keying Positions	24
Protection Mode	de
ATEX Zones	1 & 2, 21 & 22

Marechal DXN6 Plugs Load Break Capability

• Temperature rating - Gas temperature classes: T6 for an ambient T° between -40 and +40 °C, T5 for an ambient T° between -40 and +60 °C
• Temperature rating - Dust surface temperature classes: Surface T° ≤87 °C for an ambient T° between -40 and +40 °C Surface T° ≤107 °C for an ambient T° between -40 and +60 °C
• Comply with EN 60309-1 63 A / 750 V



The DXN6 is available in a wide range of voltages and polarity options for both female socket outlets and male inlet plugs:

• 20-24V, 2P
• 190-230V, 3P+E
• 220-250V, 1P+N+E
• 380V-440V, 3P+E
• 380V-440V, 3P+N+E
• 480-500V, 3P+E
• 480-500V, 3P+N+E

♦ Should you require assistance selecting or ordering hazardous area plugs please contact T&D - note all Marechal socket outlets or inlets must be associated with a box, sleeve or handle to create a plug-socket assembly.

Voltage 50Hz	Polarity	Marechal Socket Outlet Female - DXN6 (63A)	Marechal Inlet Male - DXN6 (63A)
20-24V	2P	256408A	256808A
190-230V	3P+E	2564033	2568033
220-250V	1P+N+E	2564015	2568015
380-440V	3P+E	2564013	2568013
380-440V	3P+N+E	2564017	2568017
480-500V	3P+E	2564093	2568093
480-500V	3P+N+E	2564097	2568097
