Marechal DXN1 Plugs & Sockets 20 Amp

Marechal DXN plug and socket outlets (decontactors) comply with ATEX hazardous area certification for use in explosive atmospheres including Zones 1 and 2 (gas) and Zones 21 and 22 (dust).

Marechal DXN ATEX certified hazardous area plugs and sockets (ATEX certified) are rated from 20-63amps, IP66/67 watertight ingress protection and with socket-outlet safety shutter providing IP4X protection.

DXN plugs and sockets comply with EN 50018 (explosion proof safety "d") EN 50019 (increased safety "e"), EN 50281-1-1 (electrical equipment for use in flammable dust atmospheres) and IEC 60309-1 (plugs and socket-outlets for industrial purposes) standards.


Marechal DXN1 20 Amp Explosion Proof Plugs & Sockets - Technical Specification

Rated Current (with wiring according to standard)	20A
Maximum Voltage	550V
IP Protection Lid Closed	IP66/IP67
IP Protection Connected Plug	IP66/IP67
Shock Resistance	IK08
Ambient Temperature	-40ºC to +60ºC
Flexible Wiring (Min-Max)	1mm² - 4mm²
Stranded Wiring (Min-Max)	1.5mm² - 6mm²
Other Wiring	On Request
Keying Positions	24
Protection Mode	de
ATEX Zones	1 & 2, 21 & 22

The DXN1 is available in a wide range of voltages and polarity options for both female socket outlets and male inlet plugs:

• 20-24V, 2P
• 190-230V, 3P+E
• 220-250V, 1P+N+E
• 380V-440V, 3P+E
• 380V-440V, 3P+N+E
• 480-500V, 3P+E
• 480-500V, 3P+N+E

Voltage 50Hz	Polarity	Marechal Socket Outlet Female - DXN1 (20A)	Marechal Inlet Male - DXN1 (20A)
20-24V	2P	251408A	251808A
190-230V	3P+E	2514033	2518033
220-250V	1P+N+E	2514015	2518015
380-440V	3P+E	2514013	2518013
380-440V	3P+N+E	2514017	2518017
480-500V	3P+E	2514093	2518093
480-500V	3P+N+E	2514097	2518097



YouTube Video Playlist: Marechal Plugs & Sockets Hazardous Area ATEX Plugs

YouTube Video Playlist: Marechal Industrial Plugs & Sockets

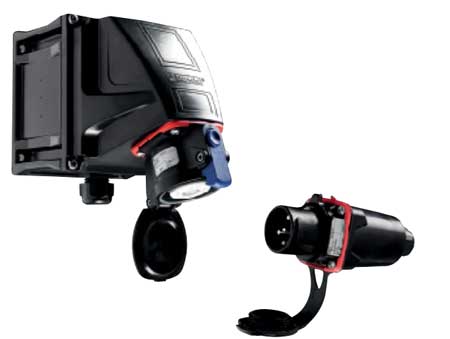

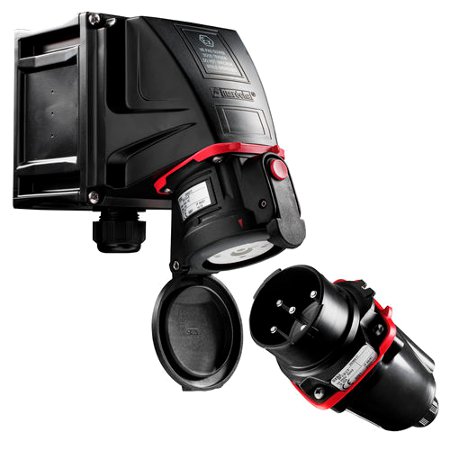

Marechal DXN1 ATEX Plugs & Sockets For Hazardous Area Zone 1 & Zone 2

A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal's DXN range of plugs and sockets are suitable for rated currents from 20A up to 63A and maximum voltages from 550V up to 750V.

ATEX Directive 94-9-EC

ATEX Plugs & Sockets - Marechal DXN Hazardous Area Plug Brochure

Marechal DXN1 20 Amp Plug & Sockets for Hazardous Area (ATEX) Zone 1 & 2
