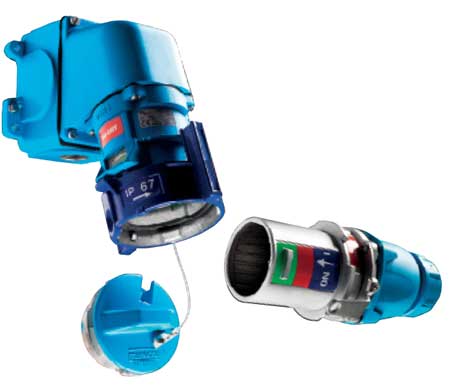

Marechal DB9 Disconnectable Motor Switches - 125 Amp, 30kW

The Marechal DB Decontactor for motors, pumps and highly inductive loads combines the functions of visible breaking motor switch and plug and socket outlet.

Marechal decontactor plugs and socket units have a direct impact on safety, cost and machine downtime.

Compliant with the machine Directive for power supply isolation allowing quick electrical equipment replacement.

Marechal DB9 typical applications - mobile motors, emergency installations, flexible production lines, testing benches for motors, fans, mobile conveyors, mixers and containers.

Operation of a Marechal Decontactor for Motors

The Marechal plug is positioned in the socket-outlet by pushing then twisting clockwise in much the same way as inserting an electric light bulb.

The Marechal plug is then in the rest position, circuit open - this is indicated by a "green" window located on the front of the Marechal socket-outlet.

At this stage, the plug can be locked onto the socket-outlet by means of a conventional lock-out. To close the electrical circuit, push the Marechal plug fully home, until it is held by the locking ring.

The window located on the front of the socket-outlet becomes "red". IP67 is achieved by turning the ring clockwise. To release the Marechal plug, simply turn the ring fully anticlockwise.

The circuit is opened and the plug returns to its parked position. To remove the plug from the socket-outlet, turn the plug from right to left. The lid can then be closed.

Turn the ring from left to right to achieve IP67 socket-outlet watertightness.

IP67 Watertightness - Dust-proof and protected against temporary water immersion.

Marechal DB9 125 Amp 30kW Disconnectable Motor Switches

Rated Current (with wiring according to standard)	125A
Maximum Voltage	690V
IP Protection Lid Closed	IP66/IP67
IP Protection Connected Plug	IP66/IP67
Shock Resistance	IK09
Ambient Temperature	-40ºC to +60ºC
Flexible Wiring (Min-Max)	16mm² - 50mm²
Stranded Wiring (Min-Max)	2.5mm² - 10mm²
Pre-wired auiliary contacts (5 A)	1.5mm²
Keying Positions	24

Marechal DB9 motor switches - Load Break Capability

• Comply with IEC EN 60309-1 and IEC EN 60309-4 standards  - 125 A / 690 V
• Rated powers (AC-3  load-breaking capacity according to IEC EN 60947-3): -  15 kW up to 230 V - 1P 22 kW up to 230 V - 3P 30 kW up to 400 V - 3P 30 kW up to 500 V - 3P 45 kW up to 690 V - 3P
• Short-circuit current Icc - 200 kA

Marechal DB9 is available in a wide range of voltages and polarity options for both female socket outlets and male inlet plugs:

• 190-230V, 3P+E
• 220-250V, 1P+N+E
• 380V-440V, 3P+E
• 220-250V & 380V-440V (Dual Voltage), 3P+N+E
• 660-690V, 3P+E
• 380V-440V & 660V-690V (Dual Voltage), 3P+N+E

Marechal DB9 Plug Assembly manufactured from metal with IP66/IP67 protection and 125amp current supply is configured using associated wall mounting socket, plug, wall box, outlet, inlet and handles.

A full range of boxes, sleeves, handles, adaptors and accessories can also be supplied. Marechal's DB range of plugs and sockets are suitable for rated currents from 40A up to 125A and rated powers from 7.5kW up to 45kW.

Marechal DB9 125 Amp 30kW Disconnectable Motor Switches

Marechal Part Number	Marechal DB3	Marechal DB6	Marechal DB9
AC-3 load-break capability	7.5 kW	22 kW	45 kW
Imax	40 A	75 A	125 A
Umax	690 V for all DB
Casing material	metal for all DB
Keying Positions (To distinguish between different power supplies & applications)	24 for all DB
Ambient Temperature	-40 °C to +60 °C for all DB
Short Circuit Current lcc	200 kA for all DB

Marechal DB9 - Socket Outlets & Inlets

Voltage 50Hz	Polarity	Marechal Socket Outlet (Female) DB9 125A	Marechal Inlet (Male) DB9 125A
190-230V	3P+E	8794033	8798033
220-250V	1P+N+E	8794015	8798015
380-440V	3P+E	8794013	8798013
220-250V / 380-440V	3P+N+E	8794017	8798017
660-690V	3P+E	8794193	8798193
380-440V / 660-690V	3P+N+E	8794197	8798197
