Abtech SX0.5

Abtech SX Stainless Steel Junction Boxes & Enclosures

Industrial, Offshore & Hazardous Area LV HV Cable Termination

ATEX Zone 1 & Zone 2 Certified



Abtech SX0.5 hazardous area enclosures are ATEX Certified for use in Zone 1 and Zone 2 hazardous areas – the terminal enclosures commonly used as junction boxes are manufactured from stainless steel and available in a full range of depths and sizes.

• ATEX EEx e (Zone 1 & Zone 2)
• ATEX EEx nA (Zone 2)
• ATEX EEx nR (Zone 2)

Abtech SX range of stainless steel enclosures and junction boxes were specifically designed to meet the rigors of the North Sea and are capable of achieving IP66, IP67 and IP68 ingress protection. SX hazardous area electrical enclosures have passed the Shell/ERA deluge test, devised to test enclosures and electrical equipment that is routinely subjected to ships decks conditions or fire deluge systems.

Abtech SX Stainless Steel Enclosures & Junction Boxes, Features

• Wide operating temperature (-70 to +175 degrees Celsius)
• Ingress protection to IP68 (submersible to 120ft)
• Fire resistant to IEC33
• Corrosion resistant
• Hazardous area approved

Hazardous Area Certified Stainless Steel Enclosures & Junction Boxes

Abtech SX enclosures and junction boxes carry global hazardous area certifications - ATEX EEx'e' to BSEN50019 (Zone 1 & 2), EEX'nA' to BSEN50021 (Zone 2), NEMA 4X (CSA, UL & FM Class 1 Div 2) and GOST.

Fire Resistant Stainless Steel Enclosures & Junction Boxes

Abtech SX enclosures can be upgraded for fire resistance applications when fitted with ceramic terminals meeting the requirement of IEC331 (750 degrees Celsius for 3 hours) and BS6387/1983 (950 degrees Celsius for 3 hours).

Stainless Steel Junction Boxes & Enclosures : Abtech SX Features

• Wide operating temperature (- 70°C to + 130°C)
• Ingress protection up to IP68
• Fire resistant junction boxes to IEC331
• Impact resistant > 10 Nm
• Corrosion resistant stainless steel enclosures
• Cable gland plates can be fitted to any or all four sides (size SX0 and above)
• Certification for use in Zone 1 and Zone 2 hazardous areas
• UL, CSA, ATEX and GOST approved junction boxes and enclosures

Abtech SX0.5 Electrical Enclosures

Junction Box Specification

Abtech Part Reference	Enclosure Material	Width mm	Length mm	Weight g
Abtech SX0.5.140 Enclosure	Stainless Steel	184	274	5000	Zone 1 & Zone 2
Abtech SX0.5.200 Enclosure	Stainless Steel	184	274	6000	Zone 1 & Zone 2
Abtech MSX0.5.140 Enclosure	Mild Steel	184	274	5000	Zone 1 & Zone 2
Abtech MSX0.5.200 Enclosure	Mild Steel	184	274	6000	Zone 1 & Zone 2

Abtech SX0.5 electrical enclosures, manufactured from stainless steel, are suitable for Zone 1 and Zone 2 hazardous areas according to the ATEX Directive - the junction box or electrical enclosure can be populated with cable terminals including Weidmuller, Phoenix and Wago types.

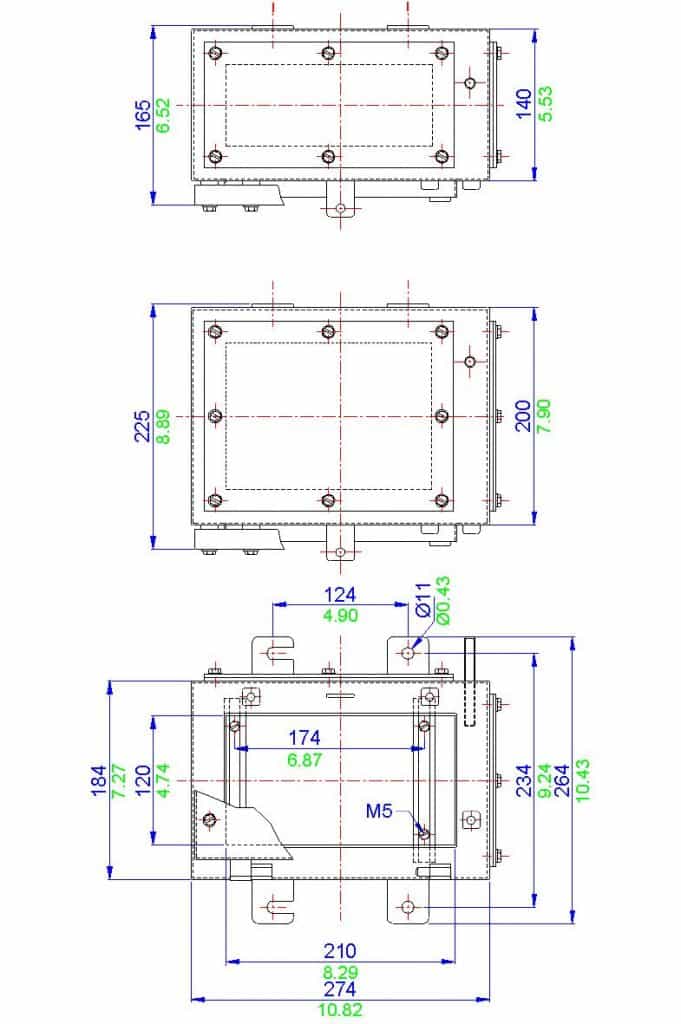

Note enclosure drawing is not to scale - blue dimensions are in mm, green dimensions are in decimal inches
