Abtech SX0

Abtech SX Stainless Steel Junction Boxes & Enclosures

Industrial, Offshore & Hazardous Area LV HV Cable Termination

ATEX Zone 1 & Zone 2 Certified

Abtech SX hazardous area stainless steel enclosures and junction boxes are available in standard depths of 140, 200 or 300mm and can be fitted with removable gland plates and client approved terminals.

Abtech SX0 electrical enclosures, manufactured from stainless steel, are suitable for Zone 1 and Zone 2 hazardous areas according to the ATEX Directive – the junction box or electrical enclosure can be populated with cable terminals including Weidmuller, Phoenix and Wago types.

Abtech SX Stainless Steel Enclosures & Junction Boxes, Features

• Wide operating temperature (-70 to +175 degrees Celsius)
• Ingress protection to IP68 (submersible to 120ft)
• Fire resistant to IEC33
• Corrosion resistant
• Hazardous area approved

Hazardous Area Certified Stainless Steel Enclosures & Junction Boxes

The full range of Abtech SX enclosures and junction boxes carry global hazardous area certifications - ATEX EEx'e' to BSEN50019 (Zone 1 & 2), EEX'nA' to BSEN50021 (Zone 2), NEMA 4X (CSA, UL & FM Class 1 Div 2) and GOST.

Fire Resistant Stainless Steel Enclosures & Junction Boxes

The Abtech SX0 enclosure can be upgraded for fire resistance applications when fitted with ceramic terminals meeting the requirement of IEC331 (750 degrees Celsius for 3 hours) and BS6387/1983 (950 degrees Celsius for 3 hours).

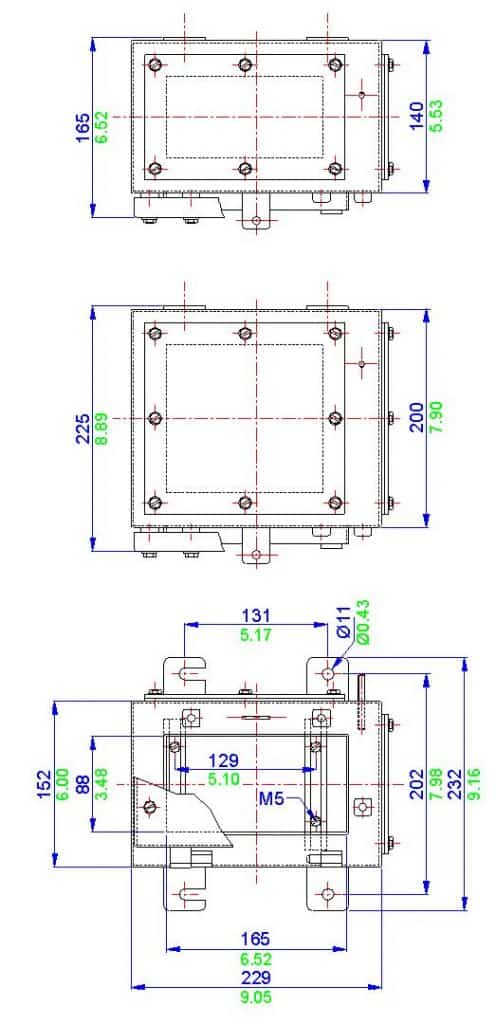

Note enclosure drawing is not to scale – blue dimensions are in mm, green dimensions are in decimal inches.

Stainless Steel Junction Box -Electrical Enclosure - Abtech SX0
