Pfisterer Connex Inner Cone Plug Cable Terminations - MV CONNEX & HV CONNEX

Pfisterer Inner Cone Plugs

Pluggable Connection Systems

MV-CONNEX Separable Connectors, Size 0 - 3-S

HV-CONNEX Separable Connectors, Size 4 - 6-S

Thorne & Derrick distribute Pfisterer CONNEX Connectors for medium and high voltage cable connection and termination to electrical systems – we provide competitive prices for Pfisterer CONNEX connectors used to terminate and connect polymeric insulated MV-HV cables into gas insulated switchgear and electrical equipment from extensive stocks to UK and international destinations.

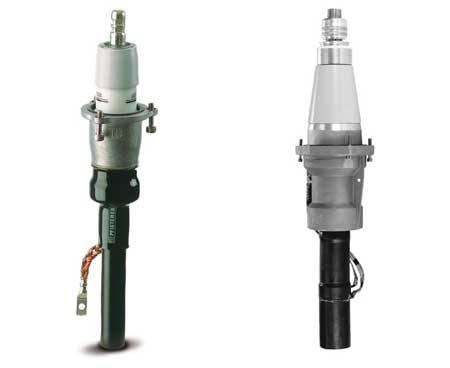

Pfisterer Connex meets all the requirements for a universal system of separable connectors. The Connex pluggable connection systems are fully insulated with metal housing, are easy to install and provide touch-proof properties. These separable connectors are also maintenance-free, suitable for outdoor use and waterproof - meaning they are suitable for the most extreme conditions.

Pfisterer Connex systems are available in a wide range of variants, ranging from conventional socket and plug combinations to many system extensions for testing purposes and special applications.



Pfisterer MV-CONNEX Separable Connectors, Size 0 to 3-S

- Medium Voltage Connex systems up to 52kV

Pfisterer HV-CONNEX Separable Connectors, Size 6 to 6-S

- High voltage Connex systems up to 245 kV

11kV, 33kV, 52kV XLPE Cable Preparation For Terminating With Pfisterer Connex High Voltage Inner Cone Plugs

"Fully-bonded" semi-conducting screen layers - use stop ring provided in Pfisterer Connex plugs against cable jacket cut. Using bonded screen removal/stripping tool peel the high voltage cable screen to the power cable jacket cut (dimension per Pfisterer Jointing Instruction). Ensure diameter of XLPE cable insulation lies within the diameter range of the Pfisterer Connex insulating part.

Easy-strip" semi-conducting screen layers - mark the extruded "easy-strip" removable semi-con layer (dimension per Pfisterer Connex Jointing Instruction). Roughen the high voltage (HV) cable screen with electrical-grade emery cloth with max. 120 grain (eg Al-Oxide 120 Grain). Use correct HV screen stripping pliers and set depth to level that ensures XLPE cable conductor is not damaged. Cut cable insulation and remove according to Pfisterer Connex instructions.

If in doubt, contact T&D or Pfisterer Connex for cable jointer advice.

Note : Pfisterer Connex Plugs should only be installed by Pfisterer Connex Trained Cable Jointers using correct approved Pfisterer Connex Tool Sets.

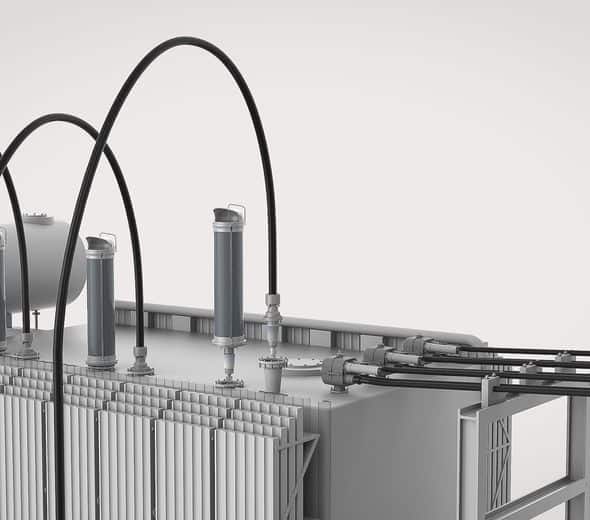

CONNEX Connectors | High Voltage Substations & Gas Insulated Switchgear
