Motorway Comms Cable Duct Systems

Polypipe are able to offer Ridgiduct Comms 94, 100 and 150mm cable ducting as a sealed system specifically designed for motorway communications direct burial applications.

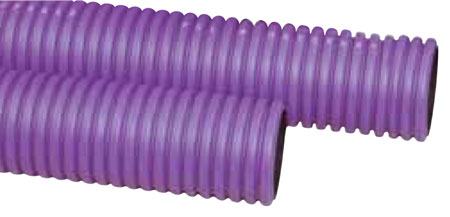

Pictured: Ridgiduct Polypipe Motorway Comms Cable Duct

Polypipe Ridgiduct is fully integrated with Polypipe access boxes.

Key Benefits - Polypipe Cable Ducting - Rigiduct Motorway Communications

• Complies with BS EN 61386-26:Type 450N, normal duty impact resistance
• IP47 rated sealed system
• BBA certified as a fully sealed system
• Certified to BS EN 50086-2-4 and meets the requirements of MCHW 1530
• Print options available for underground cable ducting
• Available in 6 and 12m lengths to minimise the number of joints
• Conforms to Highways Agency Specification for sealed systems
• For Scottish market printed Motorway Comms/Power
• Available in purple or black

Ridgiduct Polypipe Motorway Comms Cable Duct - Product Range

Part Ref	Inner Diameter	Length	Pack QTY
RB94X6PMCPPE	94mm	6m	95
RB100X6PMCPPE	100mm	6m	85
RB150X6PMCPPE*	150mm	6m	36

(*Made to order and subject to lead times. A full range of couplers, seals and duct spacers are also available)

Also - Ridgicoil Cable Ducting for Motorway Comms - Ridgicoil cable duct is a coiled twin wall underground cable protection with flexibility eliminating the need for special bends and the smooth bore has a low co-efficient of friction for ease of cable installation.

The long cable duct coils reduce the need for on-site jointing. Note there are differences of cable duct requirements for ducts in Series 500 and Series 1500 of the Specification for Highway Works.

Also : CSD RISE Cable Duct Sealing Kits to provide protection against water and gas ingress into power and motorway comms underground cable duct.
