Terminating Wavecon Cable Into Schneider M1 Low Voltage Distribution Boards

By Chris Dodds on 30th September, 2016

Follow @ThorneanDerrick

Image: Terminating Wavecon Cable Into Schneider M1 Low Voltage Distribution Boards

Pictured: Darren Street at D+R Jointing Services Ltd

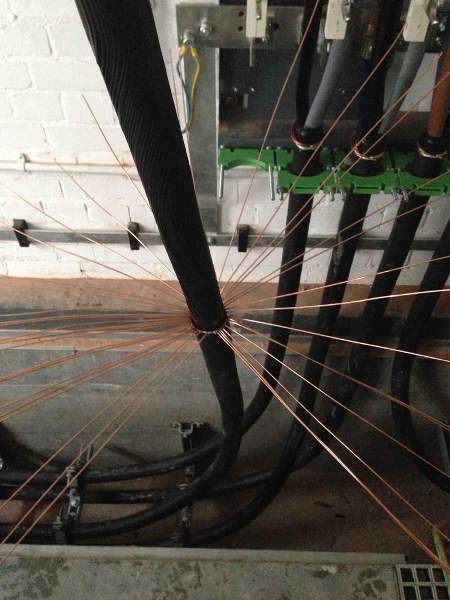

Pictured below is a 300mm² wavecon LV cable which is being terminated onto a Schneider M1 LV board as part of a full substation installation - the install was carried out by two cable jointing/fitting teams.

Modernize your aging #switchgear technology for better #sustainability. Upgrade or replace? https://t.co/Ww7fIP4G7k pic.twitter.com/DNOAzmq5K4

— Schneider Electric (@SchneiderUK) September 29, 2016
