Steel Bellmouths With Cable Rollers For Faster Cable Pulling Into Cable Ducts

By Chris Dodds on 21st February, 2014

Follow @ThorneanDerrick

T&D are Main UK Distributors for the SEB range of Cable Pulling & Cable Laying Equipment.

BM4R steel bellmouths are designed to be placed into the end of low voltage and high voltage cable ducts to allow easy passage and cable pulling of LV-HV cables into underground ducting. The bellmouths are fitted with 4no. steel cable rollers to ensure that the cable does not rub on the cable duct edges - the bellmouths are fitted with an adjusting bolt to secure them inside the cable duct.

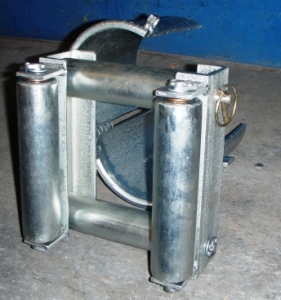

Pictured: Steel Bellmouths With Cable Rollers

Faster Cable Pulling Into Cable Ducts

The steel bellmouths are designed to suit 100mm, 125mm, 150mm, 160mm, 175mm, 200mm, 230mm and 250mm cable ducts and have been widely purchased and used by contractors working on Wind and PV Solar type renewable energy projects.

T&D can also supply Cable Duct Sealing Kits to suit all types and diameter of duct preventing water ingress, gas migration or fire spread.

Steel Bellmouths & Cable Duct Ranges

• BM4R100 99-106mm
• BM4R125 124-130mm
• BM4R150 148-155mm
• BM4R160 152-176mm
• BM4R175 170-180mm
• BM4R200 200-212mm
• BM4R230 224-236mm
• BM4R250 246-266mm


• Further reading :

Cable Laying & Pulling - Installing LV-HV Cable In Duct (Part 1 of 2)

Cable Laying & Pulling - Installing LV-HV Cable In Trench (Part 2 of 2)

Steel Bellmouths For Cable Pulling Into Ducts
