RIDGID micro IR100 Non-Contact Infrared Thermometer

By Pamela Kinnell on 9th May, 2013

Follow us on LinkedIn

RIDGID micro IR100 Non-Contact Infrared Thermometer

RIDGID micro Products

RIDGID micro IR100 - Non-Contact Infrared Thermometer



The RIDGID micro IR-100 Non-Contact Infrared Thermometer provides simple, quick and accurate surface temperature readings at the push of a button. Simply squeeze the trigger on the thermometer and point the ultra-sharp dual class II lasers at the surface being measured.

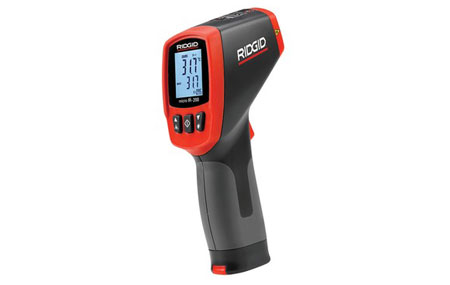

ridgid micro IR200 Infrared Thermometer

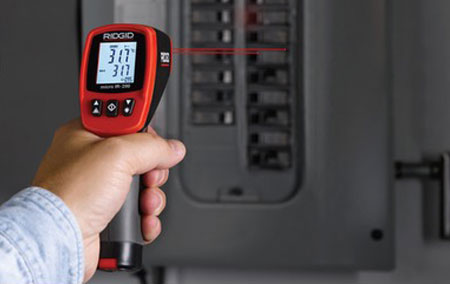

The RIDGID micro IR-100 provides an immediate temperature measurement on a clear, easy-to-read backlit LCD display. In addition to numerous other uses, the RIDGID micro IR-100 Non-Contact Infrared Thermometer enables professional tradesman to diagnose heating and ventilation problems, perform preventative monitoring of electrical motors and systems, troubleshoot steam traps and quickly check fuses or circuit breakers for overheating without contact.

micro IR-200

RIDGID micro IR100 - Non-Contact Infrared Thermometer has Ultra Sharp Dual Class II Lasers which easily illuminate the surface area being measured. The Ergonomic Pistol Style Grip on the IR 100 Infrared Thermometer allows you to keep a solid grip in the harshest of industrial environments.

The thermometer also has a 20 To 1 Distance To Spot Ratio allows you to take more accurate measurements from a farther distance and High and Low Alarms which quickly alert you to temperatures outside of the ranges that you set. The RIDGID IR100 has a Bright Backlit Display which can be toggled on in poorly lit areas plus a Tripod Mount Capable for repeatable, precise temperature measurements.



RIDGID micro IR100 Non-Contact Infrared Thermometer Specifications
Temperature Range -58° to 2192°F (-50° to 1200°C)
Measurement Accuracy 58°F to 68°F (-50°C to 20°C) ±4.5°F (2.5°C); 68°F ~2192°F (20°C ~1200°C); ±1.0% or ±1.8°F (1.0°C)
Distance To Spot Ratio 30 to 1
Response Time <150ms
Emissivity Adjustable, 0.10 - 1.00
Temperature Display Current Temperature, MAX Temperature
Measurement Units Fahrenheit, Celsius
Power Source Battery (1 x “9V”) Included



Video: RIDGID micro IR100 - Non-Contact Infrared Thermometer
