Abu Dhabi�s Etihad Tower Gets Prysmian FP200 Gold Cable Protection

By Chris Dodds on 16th June, 2010

Follow @ThorneanDerrick

Prysmian FP Cables

Etihad Towers is the latest high profile project in the Middle East to be protected by Prysmian FP200 Gold Fire Resistant cable.

The soon to be completed, billion-dollar, Etihad Towers development is set to become one of the most prestigious in Abu Dhabi and Prysmian's FP200 Gold is currently being installed in the vast fire alarm system right across the complex.

Consisting of five towers and located on the waterfront at the end of the Abu Dhabi Corniche, the development rises up to 77 storeys at its peak and features a range of amenities, including five star hotel tower, huge shopping mall, 870 luxury apartments and extensive conference centre.

Pic : FP Fire Protection Cables, Prysmian World Leading Cable Brand

The Electrical Project Manager on site commented: "On such a large and important installation as this, with more than 200,000 metres of cable being installed by our electricians, it was imperative that we used the very best fire cable on the market.

The Etihad Towers will be a major landmark in the region and so we could not risk using a product that would fail if the worst should happen."

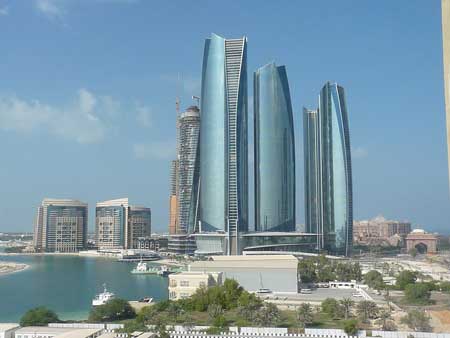

Pictured: Etihad Towers - Abu Dhabi

Prysmian FP200 Gold® is the market leading fire resistant cable for use in standard application areas as defined in BS5839-1:2002 and is the right choice for fire alarm and fire detection circuits and emergency lighting with minimum installed cost.

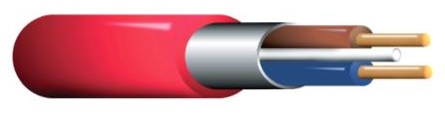

Pictured: Prysmian FP200 Gold Fire Resistant Cable



Video : Doris Greif, General Manager, Jumeirah at Etihad Towers, Abu Dhabi @ ATM 2011



Prysmian FP200 Gold Fire Resistant Cable - Features

Conductor	Plain annealed copper, solid (1.0-2.5mm²) or stranded circular conductors (4.0mm²) to meet the requirements of BS EN 60228 class 1 or class 2
Insulation	High performance, damage resistant Insudite to meet BS EN 50363-5, Type EI5
Sheath	Robust thermoplastic low smoke, zero halogen and reduced flame propagation outer sheath. Standard colours white and red with bespoke colours available to special order. For external exposure use white sheath. For red sheath use suitable shading protection from UV.
Overall Metallic Screen & CPC	Polyester backed laminated aluminium tape bonded to outer sheath to provide overall screen. In contact with full sized, tinned annealed copper circuit protective conductor and laid-up with the cores to provide automatic screen earthing.
Key Application	Fire detection & fire alarm systems for buildings Voice alarm systems Emergency voice communication Emergency & escape lighting Other essential service control circuits for 'standard' fire resistance
British Standards	BS7629-1 Construction of screened fire resistant cables BS EN 502000 PH30, PH60, PH120 & Annex E BS5839-1, 6, 8 & 9 'standard' fire resisting cable BS8519 Category 1 control cable London Underground 1.085 Approved Product Register (Section 12)



Prysmian FP200 Gold - Fire Resistant Cables



• Further Reading

Selecting The Right Properties For Your Fire Resistant Cable

Booths & Prysmian FP200 Gold At Media City UK
