Prysmian Cordaflex (SMK) Low Voltage Reeling Cables Exported To Russia

By Chris Dodds on 9th July, 2012

Follow @ThorneanDerrick

Exports

Prysmian Low Voltage Reeling Cables

Prysmian Cordaflex (SMK) (N)SHTOEU-J/-O Low Voltage Reeling Cable



T&D Exports reel in Russian business with Prysmian cables,  supplying 300 metres of Prysmian Cordaflex low voltage reeling cables to Volzhsky Plant in Russia.

Prysmian low voltage reeling cables (N SHTOEU-J/O) and flexible cables are specified throughout the worldwide open-cast and underground mining markets.

Prysmian Cordaflex flexible reeling cable is suitable for very high mechanical stresses and for DIN VDE 0168 and 0118 installations. Prysmian Cordaflex (SMK) rated voltagd is 0.6/1kV.

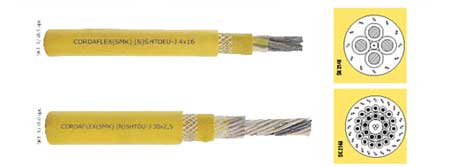

Pictured: Prysmian Cordaflex SMK Cable Low Voltage Reeling Cable



Prysmian Cordaflex (SMK) Low Voltage Reeling CableTechnical Da

Type	CORDAFLEX(SMK)
Conductor	Electrolytic copper tinned, very finely stranded class FS
Insulation	PROTOLON MS - Special compound based on high-quality EPR ( > 3GI3); Improved mechanical and electrical characteristics
Rated Voltage	Uo / U = 0.6/1 kV
Maximum permissible operating voltage in AC systems	Uo / U = 0.7/1.2 kV
Maximum operating voltage in DC systems	Uo / U = 0.9/1.8 kV
AC test voltage	3.5 kV, 5 min
Ambient temperature  - Fully flexible operation  - Fixed installation	- 35 °C to + 80 °C  - 50 °C to + 80 °C
Maximum permissible operating temperature of the conductor	90 °C
Short-circuit temperature of the conductor	250 °C
Resistance to oil	DIN VDE 0473, Part 811-2-1, Para. 10
Weather resistance	Unrestricted use outdoors and indoors, resistant to ozone, UV and moisture



Prysmian Cordaflex Protolon Cables

Unrestricted use indoors and outdoors. Resists ozone, UV, moisture and oil to DIN VDE 0473. Design feature includes Protolon insulation, a special compound based on high quality EPR for improved mechanical and electrical performance. T&D can supply Prysmian Cordaflex cables with Protolon insulation for power cable and control cable installations.
