Polypipe Ridgicoil Cable Duct Protects Underground Power & CCTV Cable In Oil & Gas Industry

By Chris Dodds on 16th April, 2014

Follow @ThorneanDerrick







T&D have supplied over 2,500 metres of Polypipe Ridgicoil cable duct to Murphy Group working on Laggan Tormore Gas Plant project to provide underground cable protection to power and CCTV cables.

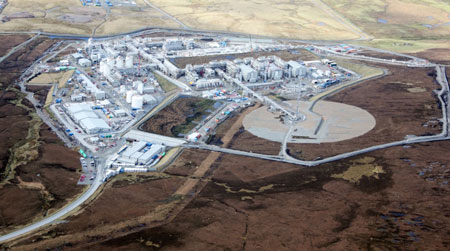

Laggan Tormore The Project

Located approximately 125km north-west of the Shetland Islands, the Laggan and Tormore fields represent the future of the UK oil and gas industry.

Both fields lie in an area known generically as West of Shetland – a region geographically closer to the North Atlantic than the North Sea – located on the edge of the UK continental shelf.

Here, water depths descend rapidly from an average of 120m to 600m and beyond. It’s a uniquely challenging environment in which to operate, but also one with great potential.

T&D have supplied 46no 50m coils of Polypipe Ridgicoil RC110X50G (Green) to protect CCTV cables and 18no 50m coils of Ridgicoil RC110X50BE (Black) to protect low voltage power cables - boths type of cable duct suit a maximum cable OD of 110mm with 94mm ID.

Polypipe Ridgicoil is a strong yet flexible alternative to conventional cable ducting for underground utilities. Polypipe Ridgicoil’s flexibility eliminates the need for special cable duct bends and the smooth bore has a low co-efficient of friction for ease of cable installation.

Polypipe Ridgicoil cable duct provides significant on-site time and labour savings compared to Ridgiduct straight lengths - ideal for projects with non-linear cable trenches where underground cable routes involve multiple bends at various angles.

Polypipe Ridgicoil cable duct flexibility allows easier protection of underground power cables feeding distribution pillars, switchgear and transformers from underground locations without resort to angled bends and couplers.

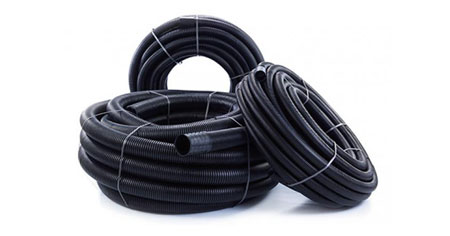

Polypipe Ridgicoil RC110X50BE 94mm Power Duct Technical Data

Net Weight	29.1500kg
Nominal Wall Thickness	8mm
Radius	55mm
Material	High Density Polyethylene
Volume	1.0780000m3
Width	1400mm
Inside Diameter	94mm
Length	50000mm
Outside Diameter	110mm

Polypipe Ridgicoil Cable Ducting Benefits

• Low weight, flexible, durable and high strength cable duct
• Excellent impact resistance, even at low temperatures
• BBA approved cable duct compliant with BS EN 50086-2-4

Cable Duct : Typical Colour Coding

• Black (B) - Electricity
• Yellow (Y) - Gas
• Orange (O) - Street Lighting
• Blue (BL) - Water
• Purple (P) - Motorway Communications
• Green (G) - Cable Television
• Purple (P) - Street Lighting (Scotland)
• Grey (GR) - Telecommunications

Special cable duct colours and prints may be subject to lead times and minimum order quantities.
