Pfisterer Sicon Power Feed Transformer Connectors - PADS Network Rail Approved

By Chris Dodds on 27th May, 2015

Follow us on LinkedIn

Pfisterer Sicon Power Feed Transformer Connectors - PADS Network Rail Approved

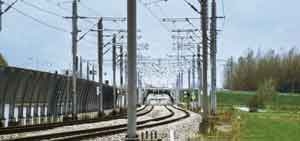

Pfisterer Rail - Connectors, Clamps, Compensating Devices, Insulators & Electrical Safety.

Pfisterer Sicon Power Feed mechanical shearbolt connectors for transformer connections are Network Rail PADS Approved.

  • Pfisterer Sicon 332 594 003 Network Rail PADS
  • Network Rail PADS 054/212152

Pfisterer



Pfisterer Sicon Power Feed connectors are suitable for terminating both copper and aluminium conductor rail cables into transformers with 4 bolt hole fixings - the transformer connector has a range take of 800-1000sqmm.

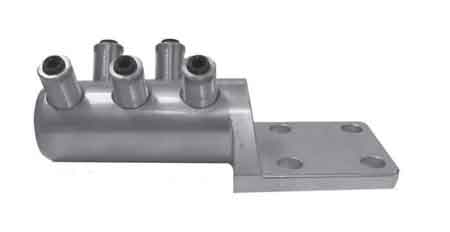

Pictured : Pfisterer Sicon - Transformer Connectors

Pfisterer Sicon

Pfisterer Sicon Benefits

  • Lighweight and portable connectors for trackside working
  • Consistent leve of installation due to stepless shearbolt technology
  • No requirement for compression or crimping tools with die sets
  • No tool calibration
  • Range taking from 800-1000sqmm
  • Suitable for both aluminium and copper cables



Pfisterer Sicon 332 594 003 - Technical Specification

Transformer Connectors
