Protect Linesmen & Engineers With Boddingtons Bodtect Overhead Line Shrouding

Electrical Safety & Arc Flash

Boddingtons Electrical Bodtect Overhead Line Shrouding

Protect Linesmen & Engineers Working on Live Overhead Lines up to 1000V



Working with the National Grid Electricity Alliances, T&D UK have been supplying Bodtect Overhead Line Shrouding to protect linesmen working on live voltages up to 1000V.

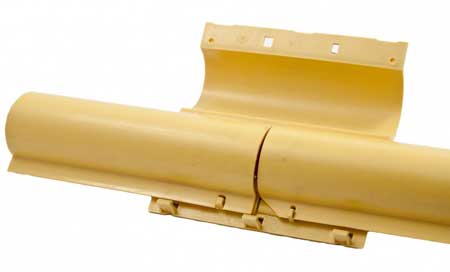

Pictured: Boddingtons Electrical Bodtect Overhead Line Shrouding

Bodtect Overhead Line Shrouding - Boddingtons Electrical

Overhead line shrouding manufactured from yellow U.V. resistant material to EA43-103 standard and suitable for up to 1000 volts protection. Bodtect overhead line shroud has been designed for ease of installation on overhead lines and conductors whilst offering complete protection. Overhead line shrouding is supplied as standard in 3 metre lengths and standard sizes 22mm, 32mm and 45mm internal diameter. Other shroud sizes available upon request. Snaplift Termination Piece secures span of shrouding in place, preventing movement.

Overhead line shrouding is used regional electricity companies (DNO's) personnel when providing protection for third parties working in proximity to live low voltage conductors.

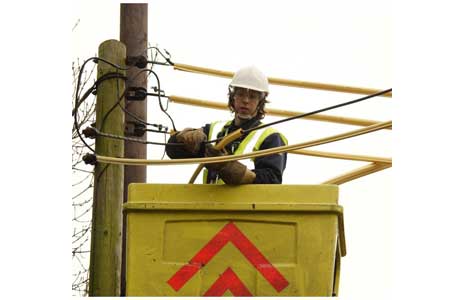

Pictured: Worker Using The Bodtect Overhead Line Shrouding

Insulated Overhead Line Shrouding



Boddingtons Bodtect Overhead Line Shrouding Technical Data
Product Number Description Internal Ø Length Weight Insulated
Bodtect22

Bodtect Overhead Line Shrouding 22

22mm 3m 620g
Bodtect32

Bodtect Overhead Line Shrouding 32

32mm 3m 980g
Bodtect45

Bodtect Overhead Line Shrouding 45

45mm 3m 1360g
Bodconnect22

Bodconnect 22 Snapfit Connector

22mm 90mm 20g x
Bodconnect32

Bodconnect 32 Snapfit Connector

32mm 130mm 40g x
Bodconnect45

Bodconnect 45 Snapfit Connector

45mm 150mm 60g x
Bodterm22

Bodterm 22 Snapfit Termination Piece

22mm 90mm 25g x

Bodterm32

Bodterm 32 Snapfit Termination Piece

32mm 130mm 45g x
Bodterm45

Bodterm 45Snapfit Termination Piece

45mm 150mm 65g x



Shrouding - Temporary Protection From Overhead Lines

If you are planning to work near overhead power lines or cables connected to a property, make sure you are able to work safely by placing temporary protective overhead line covering (also known as shrouding) over the power lines. Shrouding involves covering the power lines with a material that electricity cannot pass through. DNO's and contractors temporarily shroud overhead lines and services running into buildings and properties to permit nearby working e.g. for scaffolding erection, fascia repairs and painting work on domestic properties.


Notes - Shrouding Overhead Lines

  • Always assume overhead lines or wires are live unless advised otherwise in writing from DNO
  • Local DNO can confirm type and voltage of the overhead lines - power or telephone lines are often confused
  • It is technically impossible to shroud high voltage overhead lines, so if working near to high voltage overhead lines it is recommended to request electrical safety advise from local DNO
