LUL Compliant Optical Fibre 48 Way IP67 Splice Enclosures

By Chris Dodds on 28th August, 2012

Follow @ThorneanDerrick

Stainless Steel Enclosures

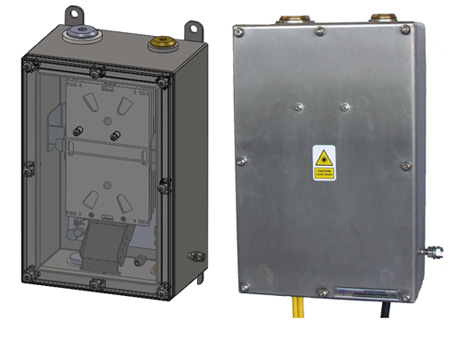

Optical Fibre 48 Way IP67 Splice Enclosure



LUL compliant weatherproof optical fibre enclosures are manufactured from AISI 304 stainless steel providing secure cable splicing for up to 48 fibre cable. Ideally suited to harsh external applications such as rail track and roadside environments, the cabinet has an IP rating of IP67.

The enclosure is wall, pole or frame / Unistrut mountable with steel external mounting points fitted at each corner. The 12-fibre pivoting splice cassette management system makes cable management and maintenance logical and straightforward. Cable tubes are routed safely around the unit via cable management rings.

Fibre cable entry and exit is uncomplicated via up to 4 entries, 2 from below and 2 from above with each incoming cable central strength member securely secured on to the base plate. Access to the interior of the splice cabinet is obtained through the bolted front door which has security bolts fitted at each corner for added security.

Optical Fibre 48 Way IP67 Splice Enclosure Key Features

• 2mm Durable brushed Stainless Steel AISI 304
• Up to 48 splicing capacity
• Individual pivoting tray access
• Up to 12 fibres per tray
• Enclosure earthed to LUL Standard



Optical Fibre 48 Way IP67 Splice Enclosure Technical Specifications

Dimensions	Width 200mm Height 300mm Depth 141mm
Weight	17kg
Capacity	Up to 48 splices
Materials	2mm Stainless Steel to AISI 304
Finish	Brushed
Cable Access	2 x M32 Threaded Entries 2 x M25 Threaded Entries
