Offshore Cable Pulling Equipment

SEB Cable Laying & Pulling Equipment



T&D have tendered to all approved vendors for the cable pulling equipment requirement for the forthcoming Bonga FPSO October 2013 offshore shutdown.

SEB Cable Laying & Cable Pulling Equipment enables the installation of LV-HV power, fibre optic, telecoms, subsea cables and umbilicals into cable duct or cable trench.

A comprehensive cable laying package includes cable rollers (straight and corner), cable drum jacks, cable winches and cable socks including stainless steel socks for pulling large diameter, high voltage subsea power cables and umbilicals up to 400kV.

SEB Cable Laying & Cable Pulling Equipment Ordered

Cable Jacks		SJ3 or equivalent : 3-Tonne Cable Jacks. Quantity = 6 SJ6 or equivalent: 6-Tonne Cable Jacks. Quantity = 2 SJ10 or equivalent : 10-Tonne Cable Jacks. Quantity = 2
Cable Rollers		CR4 : Triple Corner Cable Rollers. Quantity = 4  SR5 : Suspended Cable Rollers. Quantity = 60 VR1: Straight Cable Roller Assembly. Quantity = 2 HBSP125 : Straight ‘Bridge’ Cable Rollers. Quantity = 60 HSP125 : Straight Cable Rollers. Quantity = 60 TRP76 : Straight Cable ‘Narrow’ Rollers. Quantity = 60



The Bonga Field is an oilfield in Nigeria located in License block OPL 212 off the coast, which was renamed OML 118 in February 2000.

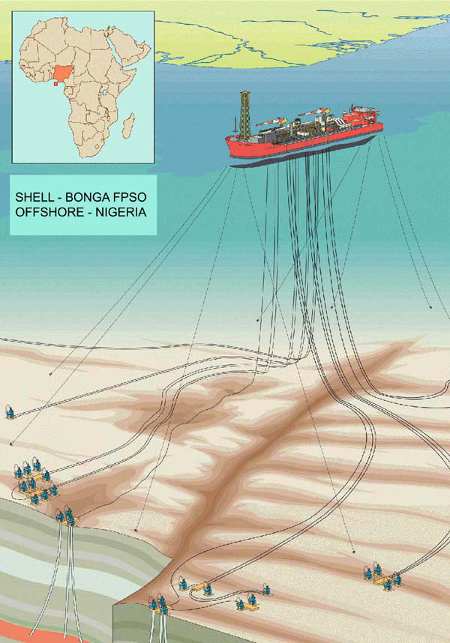

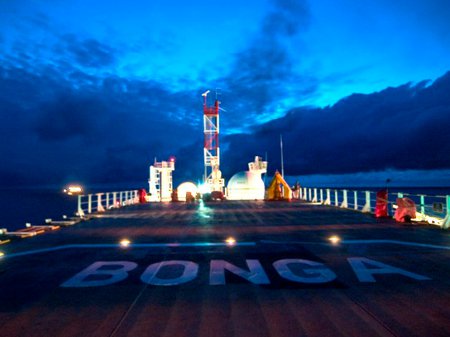

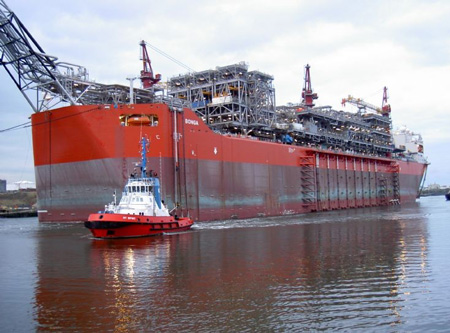

Pictured: Shell Bonga FPSO Offshore Oil Field Nigeria



The field covers approximately 60 km² in an average water depth of 1,000 metres (3,300 ft) and was discovered in 1996, with government approval for its development given in 2002.

The field began first production in November 2005. The field is produced via a FPSO vessel and produces both petroleum and natural gas; the petroleum is offloaded to tankers while the gas is piped back to Nigeria where it is exported via an LNG plant. The oilfield contains approximately 6,000 mmBoe.

The Bonga Field is operated by Shell Nigeria who own 55% of the license, other partners in the field development are Exxon (20%), Nigerian AGIP (12.5%) and Elf Petroleum (12.5%)







Further Reading:

Cable Laying & Pulling - Installing LV-HV Cable In Duct (Part 1 of 2)

Cable Laying & Pulling - Installing LV-HV Cable In Trench (Part 2 of 2)
