Nexans Euromold K430TB Separable Connectors Overnighted to Enable Siemens Switchgear Switch-on

By Chris Dodds on 12th July, 2012

Follow us on LinkedIn

Nexans Euromold K430TB Separable Connectors Overnighted to Enable Siemens Switchgear Switch-on

HV Cable Jointing & Terminating

Plugs, Bolted Tees & Connectors

Nexans Euromold K430TB HV Screened Separable Connectors

T&D are UK distributors for Nexans Euromold High Voltage Screened Separable Connectors. Today, Thorne & Derrick met an urgent order to supply Shepherd Engineering Services overnight with several sets of K430TB type Euromold bolted tee connectors to their Teal Park, Lincoln project.

Nexans Euromold bolted-tee high voltage connectors were used to terminate single core BS7835 cables into Siemens 24kV gas insulated medium voltage switchgear (8DJH type).

Nexans Euromold K430TB Connector

Nexans Euromold 430TB-630A Separable Connector Specifications

Separable Connector Type

Voltage

Um

Current

Ir

Conductor Sizes

Min Max

Nexans Euromold 430TB-630A

12kV 630A 35mm² 300mm²

Nexans Euromold K430TB-630A

24kV 630A 35mm² 300mm²



Nexans Euromold Cable Terminations for High Voltage Switchgear & Transformers

Nexans Euromold manufacture 11kV-33kV pre-moulded EPDM separable elbow connectors, heat shrink cable joints and cable terminations, cold shrink cable joints and cable terminations and epoxy bushings for high voltage switchgear and transformers.

Euromold cable accessories meet CENELEC HD929.1, CENELEC EN50180, IEC 137, IEEE 386 & 404. A screened cable connector is an encapsulated, safe to touch high voltage cable termination used to connect HV cables to the epoxy bushings of high voltage electrical equipment including transformers, switchgear and motors.

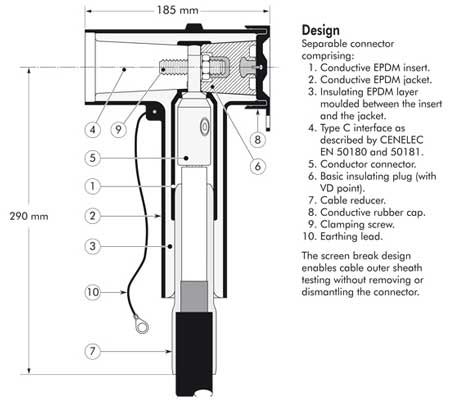

Pictured: Nexans Euromold 430TB Tee Connector 12kV - 36kV 630Amps Interface C

Nexans Euromold 430TB Tee Connector 12kV - 36kV

Project Spotlight

The main steel framework has been put in place this week for Siemens’ £25 million facility at Teal Park near Lincoln. The construction phase of this complex project, scheduled to take nine months, is expected to create jobs for around 250 construction workers in Lincoln.

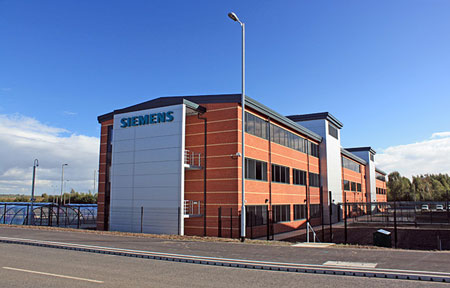

Pictured: Siemens Teal Park, Lincoln

Siemens, Teal Park Lincoln

Siemens are relocating their gas turbine business from existing sites in central Lincoln to a new building at the edge of the city. Teal Park is hoped to become a landmark development for the region when complete, with the potential to attract £500 million of business investment over the next 10-15 years and create some 4,000 jobs.
