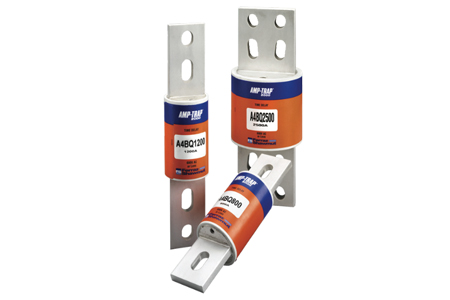

Mersen Amp-Trap 2000 Fuses For Mitigating Arc Flash Hazards

By Chris Dodds on 18th March, 2014

Follow @ThorneanDerrick

Electrical Safety - Arc Flash Protection

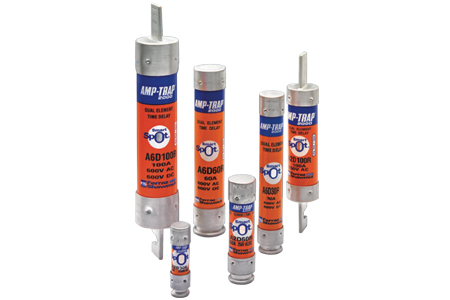

Mersen Amp-Trap 2000 SmartSpot Time-Delay A6D-R Fuses



Mersen Amp-Trap 2000 fuses protect people and equipment from the explosive energy of an arcing fault. Watch Mersen's Arc Flash mitigation video to see test lab footage showing how Mersen fuses reduce the damage to equipment and PPE.

Mersen Amp-Trap 2000 current-limiting fuses opening in less than one-quarter cycle at fault currents up to 300kA and minimize the let-thru current that flows downstream. Amp-Trap 2000 SmartSpot time-delay A6D-R fuses provide IEC Type 2 "no damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads.

Mersen Amp-Trap 2000 Fuses Features

• Solid-state SmartSpot indicator
• Time-delay for motor starting and transformer inrush currents without nuisance opening
• 300kA interrupting rating, self-certified (UL witnessed test
• Extremely current-limiting for low peak let-thru current
• Easy 2-to-1 selectivity for prevention of nuisance shut downs and "black outs"
• Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
• High-visibility orange label gives instant recognition
• Reduced inventory by taking the place of Class RK5, K, and H fuses
• Metal embossed date and catalog number for easier traceability and lasting identification
• Fiberglass body provides dimensional stability in harsh industrial settings
• High-grade silica filler ensures fast arc quenching

Mersen Amp-Trap 2000 Fuse Product Details

AC Voltage	600 VAC
DC Voltage	600 VDC
Ampere Range	1/10-600 A
I.R. AC	200 kA
I.R. DC	100 kA
IR Other	300kA 600VAC, Self Certified (UL Witnessed)
Class	Class RK1
Speed / Characteristic	Time-Delay
Mounting	Clip
Connection Terminal Type	Ferrule Blade
Body Style	Cylindrical Rejection
Body Material	Polyester
Materials Contact	Tin-plated Copper
Standards	UL Listed to Standard 248-12, File E2137 DC Listed to UL Standard 248 CSA Certified to Standard C22.2, No. 248.12
Applications	Motors Safety Switches Transformers Disconnects Control Panels All General-purpose Circuits
UL Certification	E2137 JDDZ.E2137
CSA Certification	1422-02 1422-02
