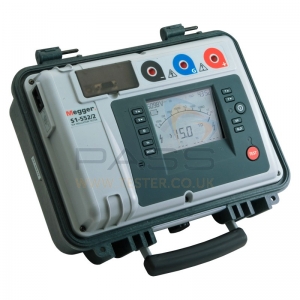

High Current Insulation Resistance Tester - Megger 5 kV S1-552/2

High Voltage Electrical Equipment

The Megger 5kV S1-552/2 High Current Insulation Resistance Tester has a high output current 5 mA for fast charging of capacitive loads and tests up to 5kV. The insulation resistance tester can be mains or battery powered and has a digital/analogue backlit display for easy readings. Other features of the Megger Tester are: Variable test voltage from 50-5000V, Automatic IR,PI,DAR,SV and DD tests, Measures to 15 TΩ, RS232 and USB download of results.

Now CAT IV, the Megger Insulation Resistance Tester S1-552/2 was designed specifically to assist you with the testing and maintenance of high voltage electrical equipment. The Megger tester case is incredibly rugged and easy to carry, being made of tough polypropylene and achieving an ingress protection rating of IP65. In addition, the model number is marked on both the top and side of the insulation resistance case for ease of identification in stores or vehicles.

As well as measuring insulation resitance to 15 TΩ, the Megger High Current Insulation Resistance Tester S1-552/2 also offers various diagnostic tests such as Polarisation index, Dielectric Absorption Ratio, Step Voltage and Dielectric discharge.

The Megger 5kV instrument has a large easy to read backlit LCD display making it equally suitable for use in both bright unlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.

Please Click Here for more information: Megger Insulation Resistance Tester



Video: High Current Insulation Resistance Tester - Megger 5 kV S1-552/2
