Lucy Zodion Fortress Feeder Pillars For Network Rail Station Car Park Lighting

By Chris Dodds on 12th May, 2014

Follow @ThorneanDerrick







T&D are Lucy Zodions largest distributor of Fortress Feeder Pillars to the UK rail industry - working with AMCO Rail, T&D have specified and delivered Lucy Fortress Single Door (08HDG3) Feeder Pillars to Network Rail's Collingham Station, Newark upgrade project.

The feeder pillars will provide control and distribution of low voltage power to the new rail station's car park lighting scheme.

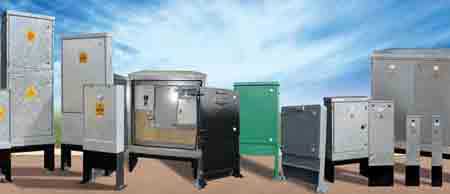

Pic : Lucy Zodion Fortress Feeder Pillar Range

Lucy Zodion Fortress Feeder Pillars are manufactured in 3mm thick galvanised steel and are supplied with removable root section, 18mm plywood backboard and anti-vandal lock - additional extras available.

Lucy Zodion - Fortress Feeder Pillar Specification

• Long life solid stainless steel hinge blocks on all feeder pillars
• Vandal resistant fully flush hinges
• Two tri-head locks fitted as standard
• Backboard made from 18mm treated exterior grade plywood
• Detachable feeder pillar roof
• ‘Danger’ warning label fitted in door recess
• Detachable root section finished in bitumen enriched paint
• Earth lead between feeder pillar body and door
• High quality UV resistant paint to an average thickness of 60 microns
• Feeder pillar door seal to IP65

T&D are Link-up Registered and Approved Vendors to Network Rail and TfL London Underground (LU).

T&D together with Lucy Electric also offer double door feeder pillars, mini feeder pillars and micro feeder pillars.
