LSF Mains Straight Resin Filled Joint 185-300sqmm 4 Core SNE

By Chris Dodds on 13th November, 2015

Follow @ThorneanDerrick

Image: Daniel Betts (Cable Jointer Western Power Distribution)

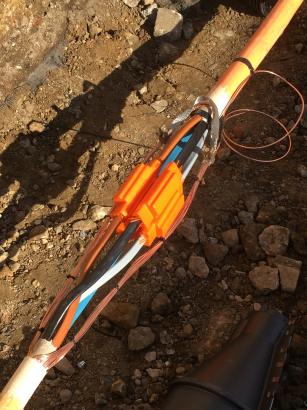

Pictured: LSF Mains Straight Resin Filled Joint 185-300sqmm 4 Core SNE

The 3 part resin cable joint shows the neutral conductor with the blue core at the bottom of the cable joint. The earth wires from both sides of the cable joint are in a BCNE connector with an equalisation bond and copper earth tail-  they are required to extend out from the connector 5mm either side of the cable. A black mastic water block is wrapped around the earth tail.
