Jointing Masterclass - Waveform Mains & Hybrid Service Cable Joint

By Chris Dodds on 13th November, 2015

Follow @ThorneanDerrick

Image: Antonia Stevenson

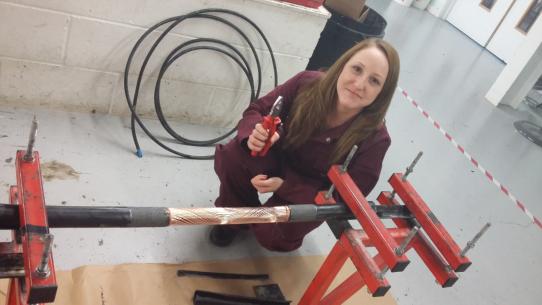

Pictured: Jointing Masterclass Using 185sqmm Waveform for Mains and a Hybrid Cable for the Service Cable.

Antonia attending her very first cable jointing masterclass in a jointing bay at Power Engineering Training Facility in Corby, Northamptonshire. Training provided by Richard Seaton.

Working conditions : warm, dry, clean, no mud.

Meanwhile, in a typical joint hole somewhere in the UK.

Yellow wellies on! Jointers tent up! Lunch in a puddle!

Perfect conditions for hippo's and cable jointers.
