T&D Supply Hellermann Tyton MBT Stainless Steel Cable Ties to Shell Bonga North West Project

By Chris Dodds on 1st October, 2012

Follow @ThorneanDerrick

Hellermann Tyton Cable Ties

Hellermann Tyton MBT Stainless Steel Cable Ties





With the support of Hellermann Tyton, T&D have landed a major offshore project order for the supply off their range of MBT stainless steel cable ties to Shell Bonga NW (Topsides Facilities) project.

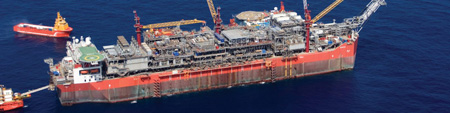

The Bonga field is located 75 miles (120 kilometers) offshore Nigeria in Oil Prospecting License 212. The field spans 37 miles (60 kilometers) in water depths of more than 3,281 feet (1,000 meters) and began producing oil and gas in November 2005. SNEPCo (55%) under a Production Sharing Contract with Nigeria National Petroleum Corporation (NNPC) operates Bonga.

Other partners in the field are Esso with 20% interest, NAE Nigerian Agip Exploration with 12.5% interest and Elf Petroleum Nigeria with 12.5%.

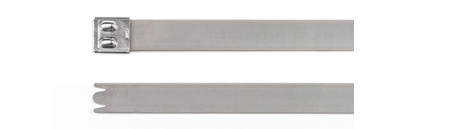

Hellermann Tyton MBT (Metal Ball Bearing Ties) ties have a patented non-releasable locking feature and offer infinite adjustment within their length.

Hellermann Tyton stainless steel cable ties are heavy duty type cable ties, once installed they can be opened and re-used if required.

MBT cable ties are available in both types 316 and 304 grade stainless steels. Metal ties are predestinated for all areas with requirements for high holding force, reliability and fire resistance.

The MBT range of stainless steel cable ties can be used in chemical industry and on oil platfroms as well as in mass transit, shipbuilding and mining industry.

MBT stainless steel ties are also suitable for machine building, apparatus construction and in the outside area of radio technology. Onshore, MBT cable ties are a good solution to fix lighting in theatres and exhibition halls.

Hellermann Tyton MBT Stainless Steel Cable Ties Features

• MBT cable ties made from stainless steel 304 & 316
• Patented non-releasable locking feature
• Corrosion resistant
• Weather resistant
• Outstanding chemical resistance
• Antimagnetic
• High temperature resistance
• Non-burning

Hellermann Tyton MBT Stainless Steel 304 Cable Ties Specifications

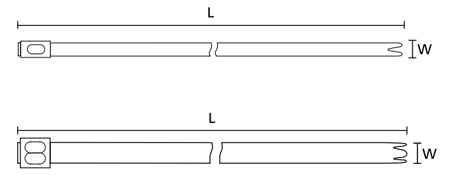

Product Type	Width	Length	Bundle ø Max	Min. Tensile Strength	Material
MBT5SS	4.6mm	127mm	25mm	900N/mm	SS304
MBT8SS	4.6mm	201mm	50mm	900N/mm	SS304
MBT14SS	4.6mm	362mm	102mm	900N/mm	SS304
MBT20SS	4.6mm	521mm	152mm	900N/mm	SS304
MBT27SS	4.6mm	685mm	203mm	900N/mm	SS304
MBT33SS	4.6mm	838mm	254mm	900N/mm	SS304
MBT8HS	7.9mm	201mm	50mm	2000N/mm	SS304
MBT14HS	7.9mm	362mm	102mm	2000N/mm	SS304
MBT20HS	7.9mm	521mm	152mm	2000N/mm	SS304
MBT27HS	7.9mm	685mm	203mm	2000N/mm	SS304
MBT33HS	7.9mm	838mm	254mm	2000N/mm	SS304
MBT14XHS	12.3mm	362mm	102mm	2700N/mm	SS304
MBT20XHS	12.3mm	521mm	152mm	2700N/mm	SS304
MBT27XHS	12.3mm	681mm	203mm	2700N/mm	SS304
MBT33XHS	12.3mm	838mm	254mm	2700N/mm	SS304



Hellermann Tyton MBT Stainless Steel 316 Cable Ties Specifications

Product Type	Width	Length	Bundle ø Max	Min. Tensile Strength	Material
MBT5S	4.6mm	127mm	25mm	900N/mm	SS316
MBT8S	4.6mm	201mm	50mm	900N/mm	SS316
MBT14S	4.6mm	362mm	102mm	900N/mm	SS316
MBT20S	4.6mm	521mm	152mm	900N/mm	SS316
MBT27S	4.6mm	685mm	203mm	900N/mm	SS316
MBT33S	4.6mm	838mm	254mm	900N/mm	SS316
MBT8H	7.9mm	201mm	50mm	2000N/mm	SS316
MBT14H	7.9mm	362mm	102mm	2000N/mm	SS316
MBT20H	7.9mm	521mm	152mm	2000N/mm	SS316
MBT27H	7.9mm	685mm	203mm	2000N/mm	SS316
MBT33H	7.9mm	838mm	254mm	2000N/mm	SS316
MBT14XH	12.3mm	362mm	102mm	2700N/mm	SS316
MBT20XH	12.3mm	521mm	152mm	2700N/mm	SS316
MBT27XH	12.3mm	681mm	203mm	2700N/mm	SS316
MBT33XH	12.3mm	838mm	254mm	2700N/mm	SS316
MBT14UH	16mm	362mm	102mm	4100N/mm	SS316
MBT20UH	16mm	521mm	152mm	4100N/mm	SS316
MBT27UH	16mm	681mm	203mm	4100N/mm	SS316
MBT33UH	16mm	838mm	254mm	4100N/mm	SS316
MBT43UH	16mm	1092mm	330mm	4100N/mm	SS316
MBT49UH	16mm	1245mm	380mm	4100N/mm	SS316



Hellermann Tyton stainless steel cable ties are available in 3 designs and support the installation of LV-HV power, control and instrumentation cables in the international oil and gas industry. Read : Extending the Service Life Span of Ageing Oil & Gas Offshore Facilities

Jan. 2012 - Shell has restarted production at its Bonga oil field offshore Nigeria, after an oil leak was detected. The facility was closed after a leak during a tanker loading operation on Dec. 20, leading to a serious oil spill, announced Dow Jones newswires.

Shell says it completed the clean-up from the spill and resumed output on Jan. 1 at the 200,000 bopd oil field. The Bonga field is located 75 miles (120 kilometers) offshore Nigeria in Oil Prospecting License 212. SNEPCo (55%) under a Production Sharing Contract with Nigeria National Petroleum Corporation (NNPC) operates Bonga.
