Over 2000 Metres Of Thermon BSX Heat Tracing Cable Installed For Diageo Winterisation Project

By Chris Dodds on 18th July, 2012

Follow @ThorneanDerrick



Heat Tracing

Thermon BSX Heat Tracing Cables

Winterisation Project



T&D have recently completed a large turnkey heat tracing Winterisation project for Diageo Scotland. Appointed as principal heat tracing contractor, Thorne & Derrick have supplied and installed over 2000 metres of Thermon BSX heat tracing cables.

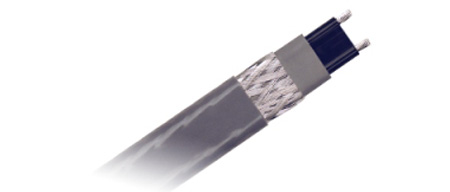

Pictured: Thermon BSX Heat Tracing Cable



Thermon BSX are self-regulating heating cables, designed to provide freeze protection or process temperature maintenance to metallic and nonmetallic piping, tanks and equipment. The BSX self-regulating cables are certified for use in ordinary (nonclassified) areas and in potentially explosive atmospheres in accordance with the ATEX Directive and the IECEx Scheme. BSX heat tracing cable has an operating voltage of 230 VAC and maximum maintenance temperature of 65°C.

Pictured: Thermon BSX Self-Regulating Heating Cable Certifications

Thermon BSX Heat Tracing Cables - Product Range

Part Number	Heat Output at 230V
BSX 3-2	9 watts per metre at 10ºC
BSX 5-2	15 watts per metre at 10ºC
BSX 8-2	25 watts per metre at 10ºC
BSX 10-2	32 watts per metre at 10ºC



The scope of heat tracing work also included extensive thermal insulation repairs/upgrade, system control requirements and electrical power wiring. Thorne & Derrick received praise from the client for “excellent workmanship” and an “impressive commitment to H&S.”

Following on from initial heat tracing works completion, Thorne & Derrick are now back on site upgrading further pipe frost protection systems to other plant areas prior to winter 2013 and as part of the heat tracing contract, will carry out on-site pre-winter maintenance checks for the next 3 years.



In a New Video Safety Message, CSB Chairman Bresland Emphasizes Effective Winterisation Programs to Prevent Process Accidents :

Video Playlist: Thermon Heat Tracing

#Winterisation @heattracing Cables Prevent Roof & Gutter Damage Caused By Winter Weather http://t.co/Tz7vypnQTk pic.twitter.com/RoW8GFUgXe

— Thorne & Derrick UK (@ThorneanDerrick) October 27, 2014
