Hawke SB 474 Hazardous Area Cable Glands ATEX Exd Exe

By Chris Dodds on 17th August, 2012

Follow @ThorneanDerrick

Hawke Hazardous Area Cable Glands

Flameproof Exd / Increased Safety Exe / Dust Extb / Dual Certified

ATEX & IECEx - Zone 1, Zone 2, Zone 21 & Zone 22

Hawke SB 474 Cable Glands



Hawke SB 474 hazardous area cable gland is for outdoor or indoor cable termination in hazardous areas, Exd and Exe.

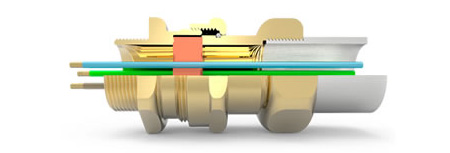

Pictured: Hawke SB 474 Hazardous Area Cable Gland

Hawke SB 474 cable glands are for particular use with the following:-

• Cables that are not effectively filled, compact and/or circular, have tape bedding or have hygroscopic fillers
• Cables that exhibit ‘Cold Flow’ characteristics

Hawke SB 474 Cable Gland Features

• Hawke SB 474 provides a barrier seal between the individual insulated cores within the cable and prevents entry of the products of an explosion into the cable
• The required number of holes for the cores are punched in the seal by means of a special tool to suit the core size
• The SB474 hazardous area glands provide female running coupler for cable gland or conduit entry
• Manufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminium
• Brass NPT entries are nickel plated as standard

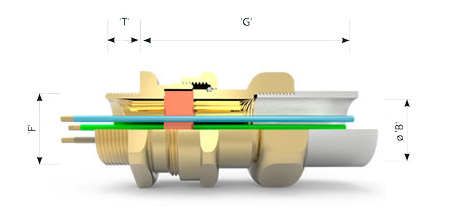

Hawke SB 474 Hazardous Area Cable Gland Specifications

Size Ref	Entry Thread 'F'		'G'	Hexagon Dimensions
				Across Flats	Across Corners
A	M20		69mm	30mm	32.5mm
B	M25		61mm	36mm	39.5mm
C	M32		61.95mm	46mm	50.5mm
