Hawke ICG 623 Hazardous Area Cable Glands ATEX Exd Exe

By Chris Dodds on 17th August, 2012

Follow @ThorneanDerrick

Hawke Hazardous Area Cable Glands

Flameproof Exd / Increased Safety Exe / Dust Extb / Dual Certified

ATEX & IECEx - Zone 1, Zone 2, Zone 21 & Zone 22

Hawke ICG 623 Cable Glands



Hawke ICG 623 cable gland is suitable for indoor and outdoor use for cable termination in hazardous areas. For use with non-armoured elastomer and plastic insulated cables.

Pictured: Hawke ICG 623 Hazardous Area Cable Gland

Hawke ICG 623 cable glands are for particular use with the following:-

• Cable inner sheaths that are not effectively filled, compact and/or circular, have tape bedding or have hygroscopic fillers
• Cables that exhibit ‘Cold Flow’ characteristics.
• Enclosures containing an ignition source in gas group IIC areas or containing an ignition source in a Zone 1 area and exceeding 2 litres in volume



Hawke ICG 623 Cable Gland Features

• Provides an inspectable, repairable barrier seal to the individual insulated cores within the cable, and prevents entry of the products of an explosion into the cable
• ƒAssembly of the cable gland compresses and distributes the compound evenly to create a barrier seal at the point of entry into the enclosure
• ƒHawke ICG 623 provides a cable retention seal onto the cables outer sheath
• ƒManufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminium
• ƒ Brass NPT entries are nickel plated as standard

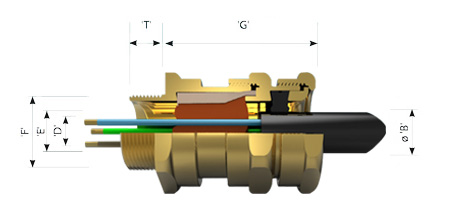

Hawke ICG 623 Hazardous Area Cable Gland Specifications

Size Ref	Entry Thread 'F'	Cable Acceptance Details				'G'	Hexagon Dimensions
		Inner Sheath/ Cores		Outer Sheath 'B'
		'D' Max Over Cores	Max Inner Sheath 'E'	Standard Seal	Alternative Seal		Across Flats	Across Corners
Os	M20	8mm	8mm	3mm - 8mm	-	56.4 mm	24mm	26.5mm
O	M20	8.9mm	10mm	6.5mm - 11.9mm	-	56.4 mm	24mm	26.5mm
A	M20	11mm	12.5 mm	10mm -14.3mm	8.5mm - 13.4mm	55.8 mm	30mm	32.5mm
B	M25	16.2mm	18.4 mm	13mm - 20.2mm	9.5mm - 15.4mm	58.8 mm	36mm	39.5mm​
C	M32	21.9mm	24.7 mm	19mm - 26.5mm	15.5mm - 21.2mm	62 mm	46mm	50.5mm​
C2	M40	26.3mm	29.7 mm	25mm - 32.5mm	22mm - 28mm	64.5 mm	55mm	60.6mm
D	M50	37.1mm	41.7 mm	31.5mm -44.4mm	27.5mm - 34.8mm	72.8 mm	65mm	70.8mm
E	M63	47.8mm	53.5 mm	42.5mm -56.3mm	39mm - 46.5mm	77 mm	80mm	88mm
F	M75	59mm	66.2 mm/ 65.3 mm	54.5mm -68.2mm	48.5mm - 58.3mm	80.7 mm	95mm	104mm
