Hawke CSB 656N Hazardous Area Cable Glands ATEX Exd Exe

By Chris Dodds on 17th August, 2012

Follow @ThorneanDerrick

Hawke Hazardous Area Cable Glands

Flameproof Exd / Increased Safety Exe / Dust Extb / Dual Certified

ATEX & IECEx - Zone 1, Zone 2, Zone 21 & Zone 22

Hawke CSB 656N Cable Glands



The Hawke CSB 656N Cable Gland is suitable for indoor and outdoor use for cable terminations in hazardous areas.

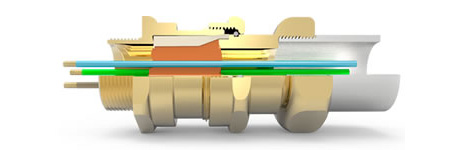

Pictured: Hawke CSB 656N Hazardous Area Cable Gland

Hawke CSB 656N cable glands are for particular use with the following:-

• Cable inner sheaths that are not effectively filled, compact and/or circular, have tape bedding or have hygroscopic fillers
• Cables that exhibit ‘Cold Flow’ characteristics
• Enclosures containing an ignition source in gas group IIC areas or containing an ignition source in a Zone 1area and exceeding 2 litres in volume



Hawke CSB 656N Cable Gland Features

• Hawke CSB 656N provides a barrier seal between the individual insulated cores within the cable and prevents entry of the products of an explosion into the cable or conduit.
• ƒSeals conductors at entry to enclosure via conduit or enables an existing cable gland to be converted to a barrier type cable gland
• ƒCSB 656N hazardous area cable gland is fitted with a simple compound filled chamber which permits packing around individual insulated conductors
• ƒAssembly of the cable gland compresses and distributes the compound evenly to create a barrier seal at the point of entry into the enclosure
• ƒIf required, external voids can be repaired
• ƒProvides female running coupler for cable gland or conduit entry
• ƒManufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminium
• ƒBrass NPT entries are nickel plated as standard

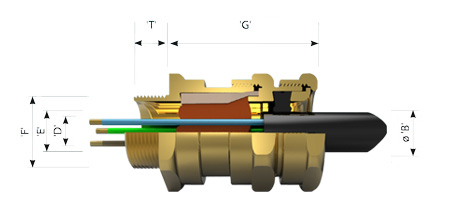

Hawke CSB 656N Hazardous Area Cable Gland Specifications

Size Ref	Entry Thread Size 'F'	Inner Sheath / Cores			'G'	Hexagon Dimensions
		Max. Over Cores 'B'	Max Inner Sheath 'E'	Max. No. of Core		Across Flats	Across Corners
A	M20	11mm	12.5mm	15	74mm	30mm	32.5mm
B	M25	16.2mm	18.4mm	30	65mm	36mm	39.5mm
C	M32	21.9mm	24.7mm	42	80mm	46mm	50.5mm
C2	M40	26.3mm	29.7mm	60	83mm	55mm	60.6mm
D	M50	37.1mm	41.7mm	80	94mm	65mm	70.8mm
E	M63	47.8mm	53.5mm	100	97mm	80mm	88mm
F	M75	59mm	66.2mm / 65.3mm	120	100mm	95mm	104mm
