Hawke 501/453/Universal Cable Glands



Hawke 501/453 Universal Cable Gland is suitable for indoor or outdoor use for cable termination in hazardous areas Exd and Exe. For use with single wire armour ‘W’, wire braid ‘X’ and steel tape armour ‘ Z’ elastomer and plastic insulated cables.

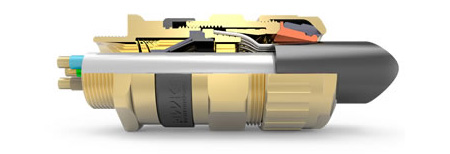

Pictured: Hawke 501/453/Universal Hazardous Area Cable Gland

Hawke 501/453/Universal cable glands are for particular use with cables that exhibit ‘Cold Flow’ characteristics.

Hawke 501/453/Universal Cable Gland Features

• Hawke 501/453/Universal provides armour clamping using one clamping arrangement for all armour / braid types
• Provides a diaphragm seal on inner sheath of cable which will not damage cables that exhibit ‘Cold Flow’ characteristics
• 501/453/Universal hazardous area cable gland provides an outer deluge seal to prevent moisture ingress to the cable armour / braid
• Provides a cable retention and low smoke and fume, zero halogen seal onto the cables outer sheath
• Manufactured in Brass (standard), Nickel Plated Brass, 316 Stainless Steel or Aluminium
• Brass NPT entries are nickel plated as standard





Hawke 501/453/Universal Hazardous Area Cable Gland Specifications

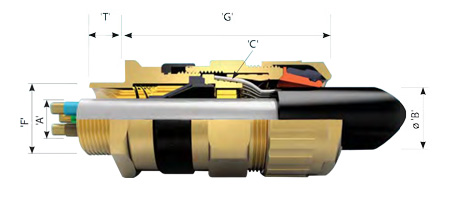

Size Ref	Entry Thread 'F'	Cable Acceptance Details					'G'	Hexagon Dimensions
		Inner Sheath 'A'		Outer Sheath 'B'	Armour/ Braid 'C'
					Orien-tation 1	Orien-tation 2		Across Flats	Across Corners
Os	M20²	3.5mm - 8.1mm		5.5mm - 12mm	0.8mm/ 1.25mm	0mm/ 0.8mm	61.6 mm	24mm	26.5mm
O	M20²	6.5mm - 11.4mm		9.5mm - 16mm	0.8mm/ 1.25mm	0mm/ 0.8mm	61.6 mm	24mm	26.5mm
A	M20	8.4mm - 14.3mm		12.5mm -20.5mm	0.8mm/ 1.25mm	0mm/ 0.8mm	63 mm	30mm	32.5mm
B	M25	11.1mm - 19.7 mm		16.9mm - 26mm	1.25mm/ 1.6mm	0mm/ 0.7mm	69.9 mm	36mm	39.5mm​
C	M32	17.6mm - 26.5 mm		22mm - 33mm	1.6mm/ 2mm	0mm/ 0.7mm​	73.2 mm	46mm	50.5mm​
C2	M40	23.1mm - 32.5 mm		28mm - 41mm	1.6mm/ 2mm	0mm/ 0.7mm​	77.9 mm	55mm	60.6mm
D	M50	28.9mm - 44.4 mm		36mm - 52.6mm	1.8mm/ 2.5mm	0mm/ 1mm​	93.5 mm	65mm	70.8mm
E	M63	39.9mm - 56.3 mm		46mm - 65.3mm	1.8mm/ 2.5mm	0mm/ 1mm​​	94 mm	80mm	88mm
F	M75	50.5mm - 68.2 mm		57mm - 78mm	1.8mm/ 2.5mm	0mm/ 1mm​​	103 mm	95mm	104mm
G	M80	67mm - 73mm		75mm - 89.5mm	2mm/ 3.5mm	0mm/ 1mm​​	90.6 mm	106.4mm	115mm
H	M90	67mm - 77.6mm		75mm - 89.5mm	2mm/ 3.5mm	0mm/ 1mm​​	90.6 mm	115mm	130mm
J	M100	75mm - 91.6mm		88mm - 104.5mm	2.5mm/ 4mm	0mm/ 1mm​​	90.6 mm	127mm	142mm
